Wind resistance connect parts

Wind resistance connect parts

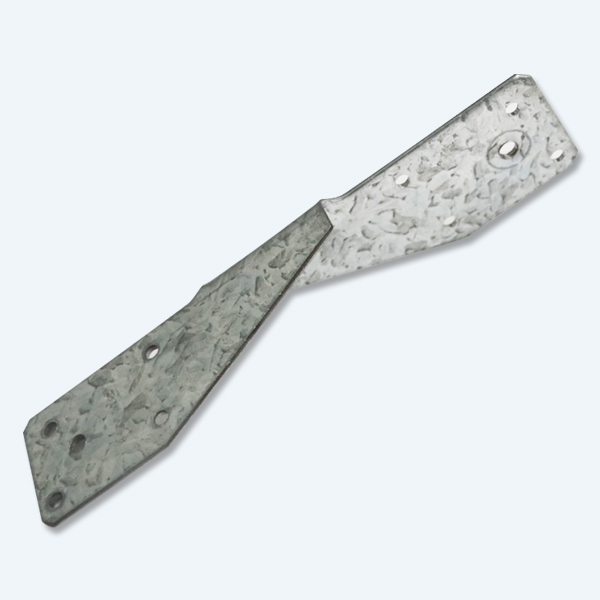

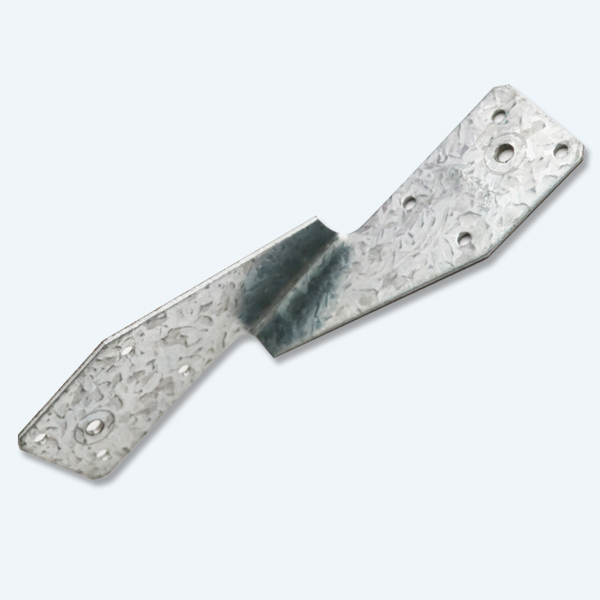

Model：KF160-20

Dimensions：160*40*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation Instructions

Wind resistance connect parts, normally, used in connection the wall and truss with thin flat or round head washer drlling screw, Wind resistance connect parts used in the outsides wall is better and prevent the inner wall uneven. There are no other parts on both sides of the connecting truss and the upper of the wall, the outer hexagonal drill tail screw can be used to fix it, and the screw be full is better.

A  wall – B wall – Truss LGS – Wind resistance connect parts

Introduction

The original truss connector is divided into two pieces (left and right). Now, most of them only buy one (left) part, and sometimes they can not be used because some parts space cannot be connected to LGS. Refer to the different use place, choose to use different type truss connect parts and the effect is better.

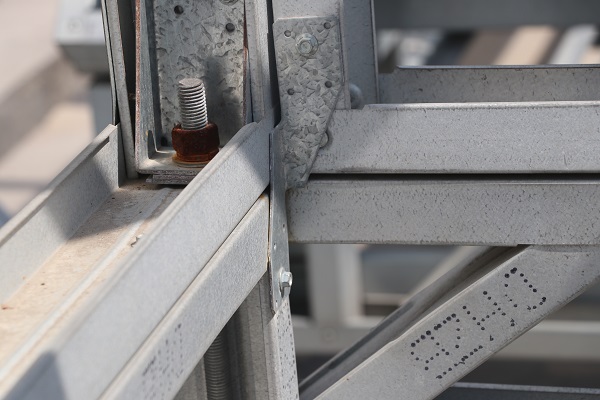

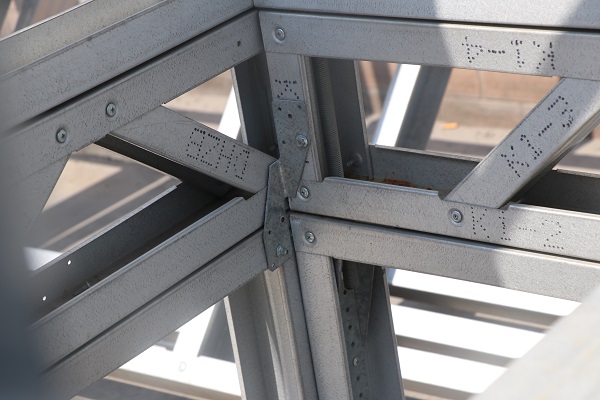

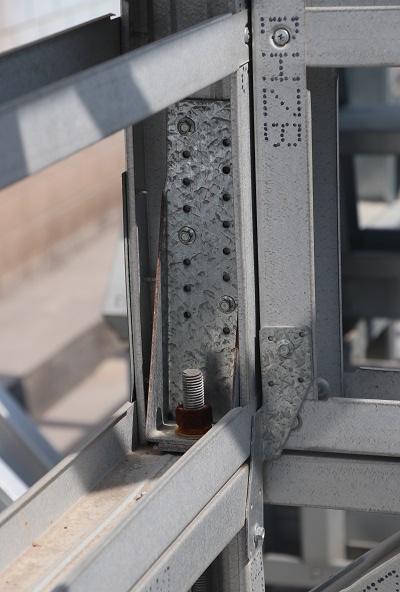

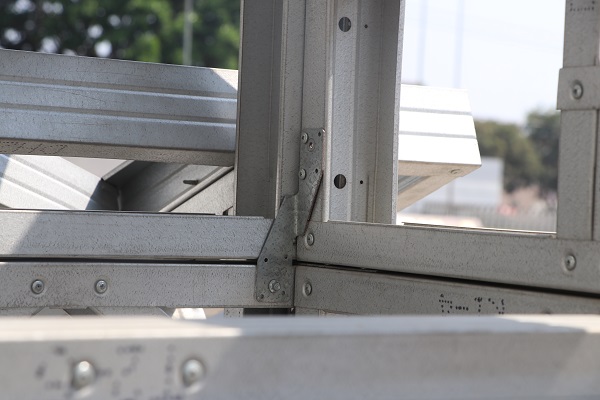

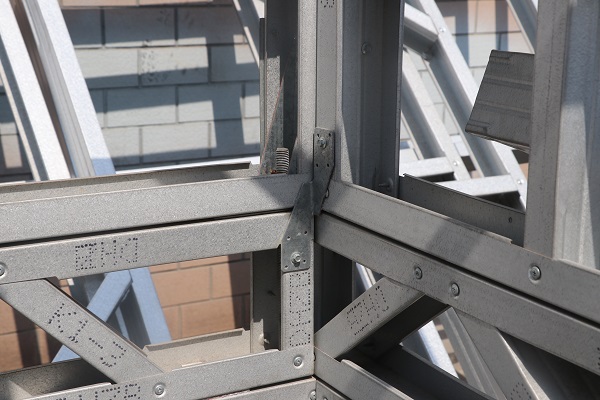

Installation Diagram

Connect the truss and wall
