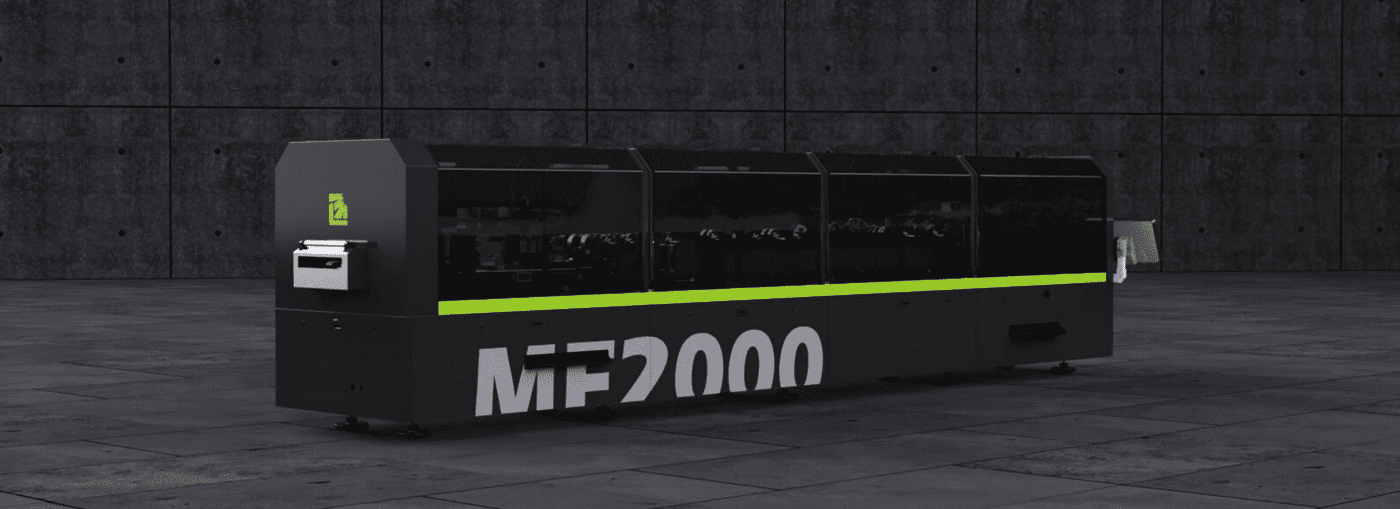

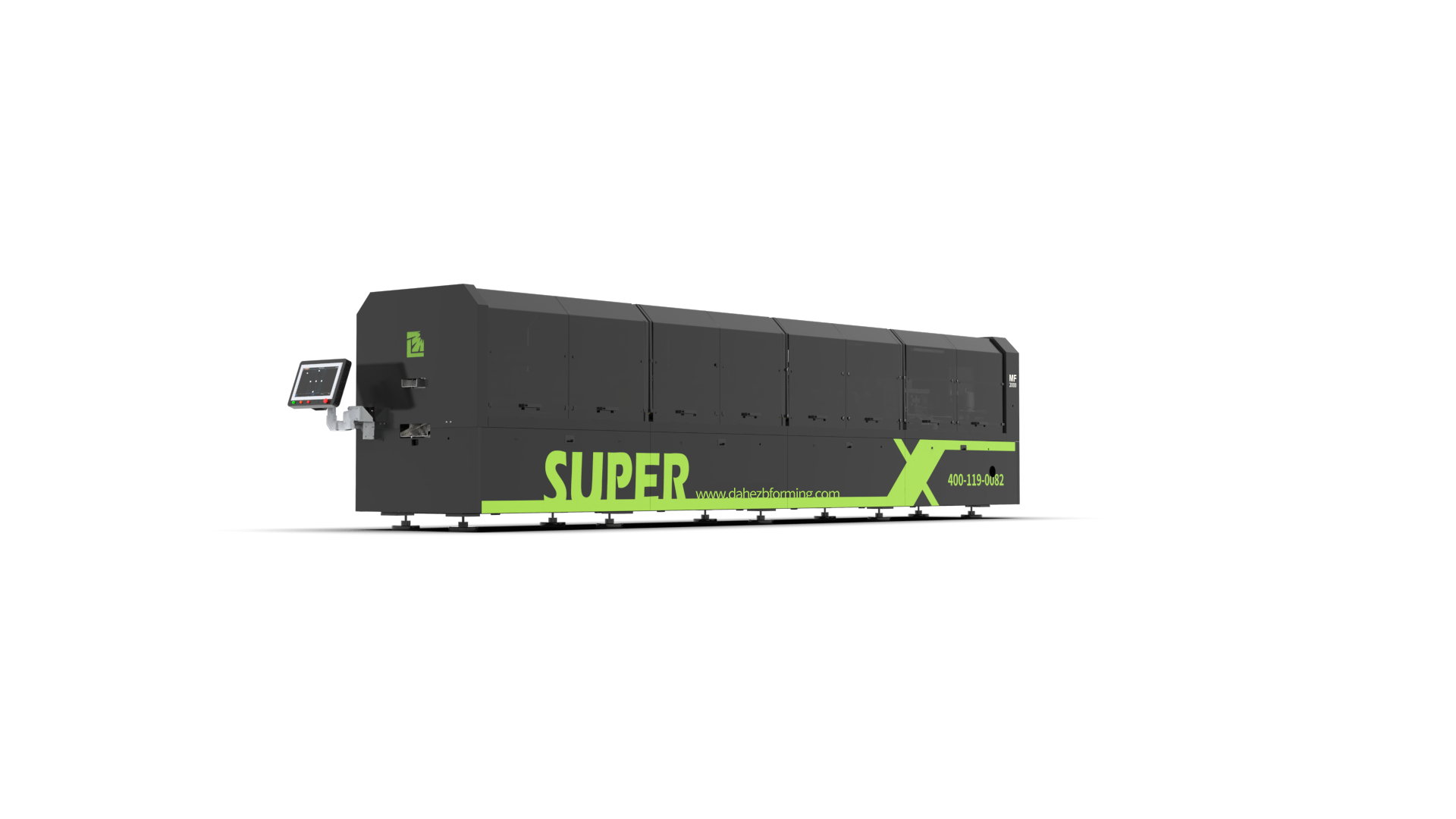

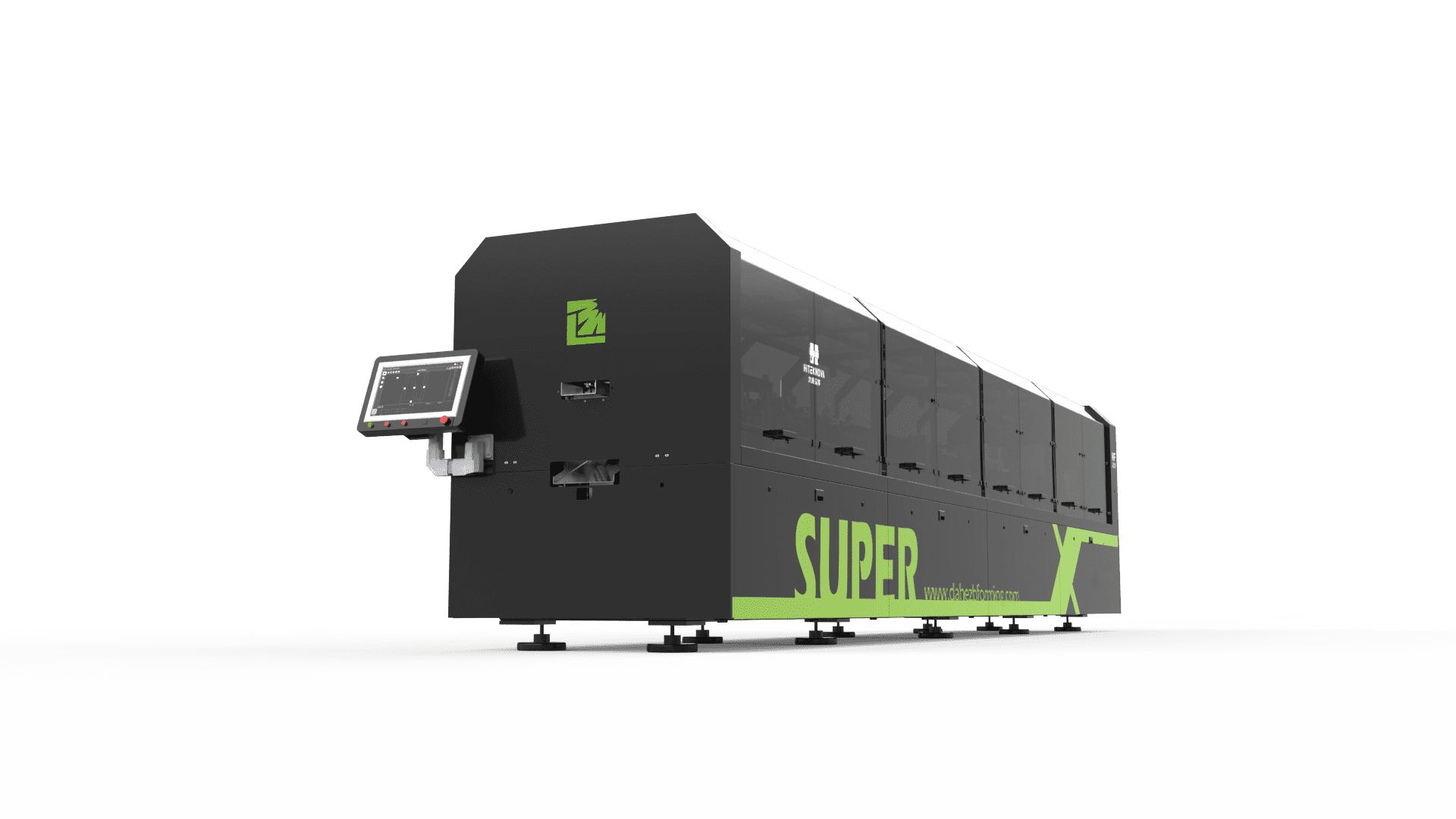

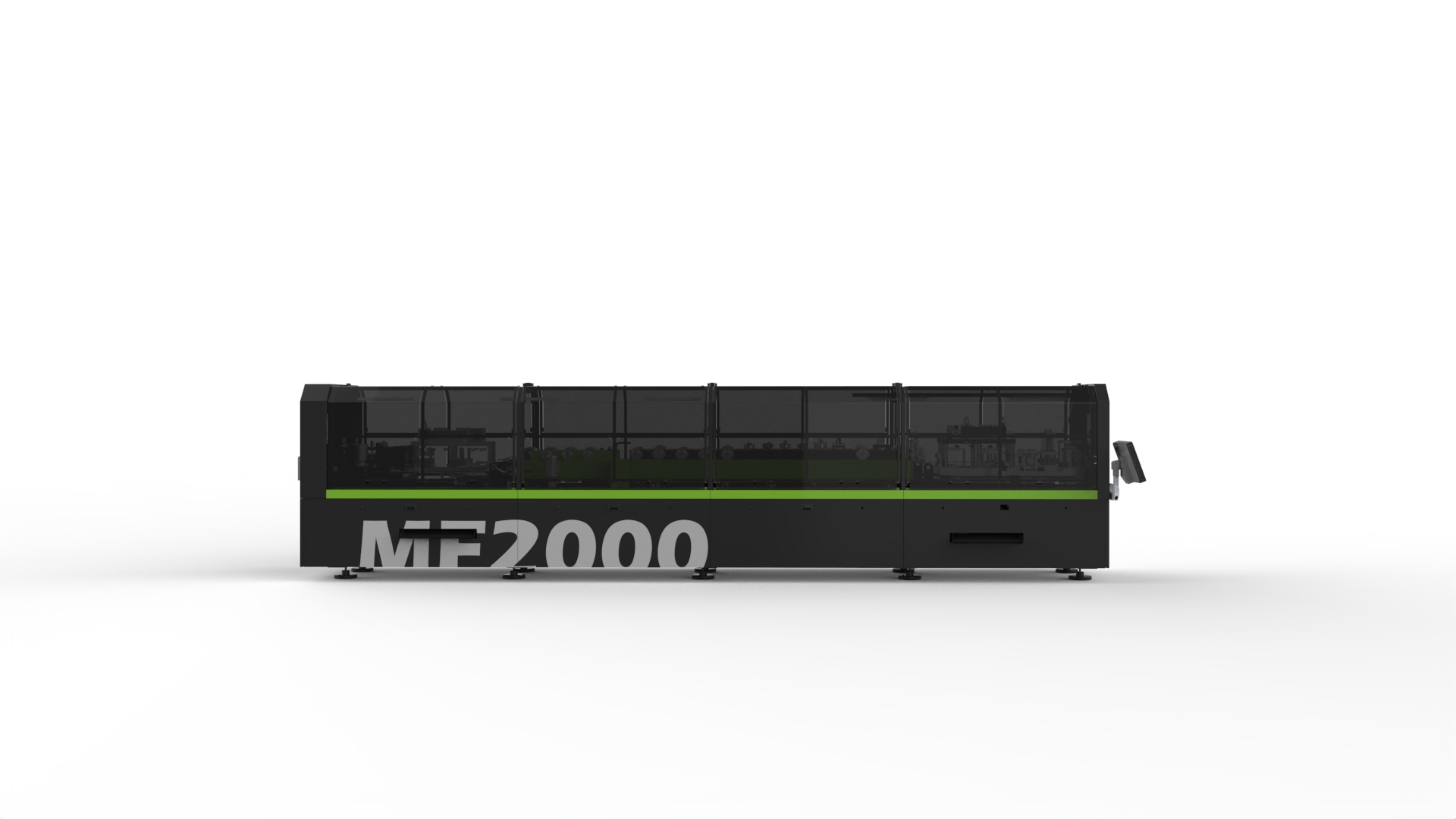

Wall Stud & Track LGSF Cold Forming Machine MF2000

The Hiteknova Super MF2000 requires only one unit to meet the various demands of light gauge steel framing machine. The MF2000 not just a machine, but a valuable asset for any construction team looking to enhance their productivity and efficiency. Suitable for CC & CU system reach 89-200mm (3.5-7.87 inch) , the thickness can reach 0.75-1.6mm（0.029-0.062 inch）.

MF2000 is designed specifically for the manufacture of bolts, trusses, wall panels, and floor panels for high-rise residential, villas, and apartments and the MF2000 possesses the function of intelligent and rapid model change. In the design, 3 flange specifications have been newly added, allowing for flexible switching, and it is compatible with the construction drawings drafted by designers using different design software.

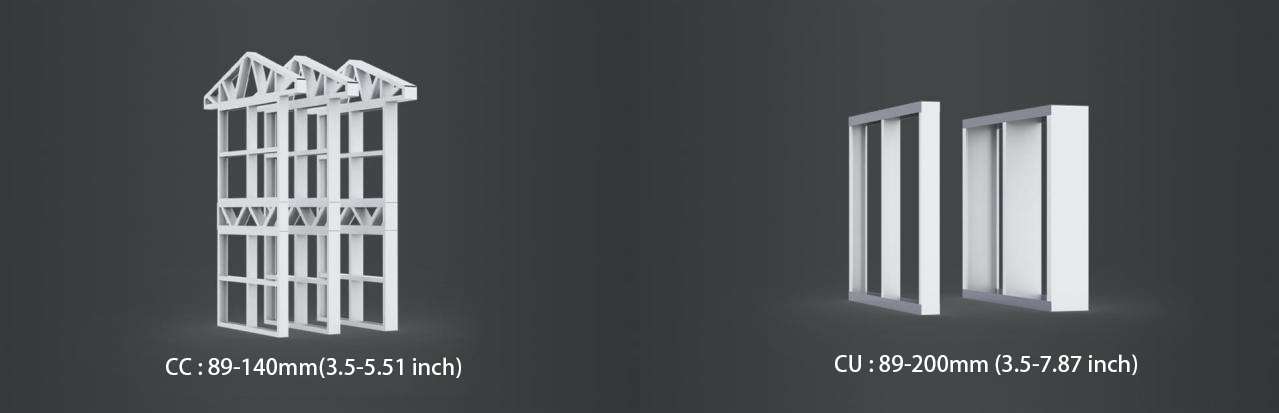

Multi Profile

CC/CU:

“U” Profile Dimensions

Profile Height (flange):41mm（1.61 inch）

Profile Width (web): 75-200 mm(2.95-7.87 inch）

“C” Profile Dimensions

Profile Height (flange): 41mm（1.61 inch）

Profile Width (web): 75-200 mm(2.95-7.87inch)

Profile Lip (flange): (8~15)mm（0.31-0.59 inch）

Material Thickness: 0.75-1.6 mm（0.029-0.062 inch），Q235、Q345、G550, hot-rolled galvanized steel strip

Technology Parameters

Flow chart

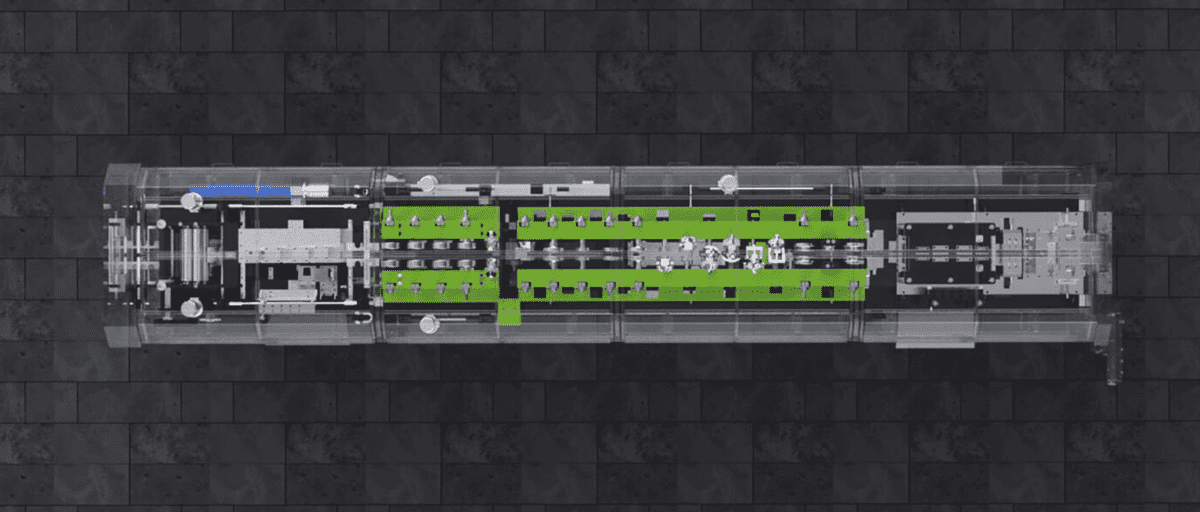

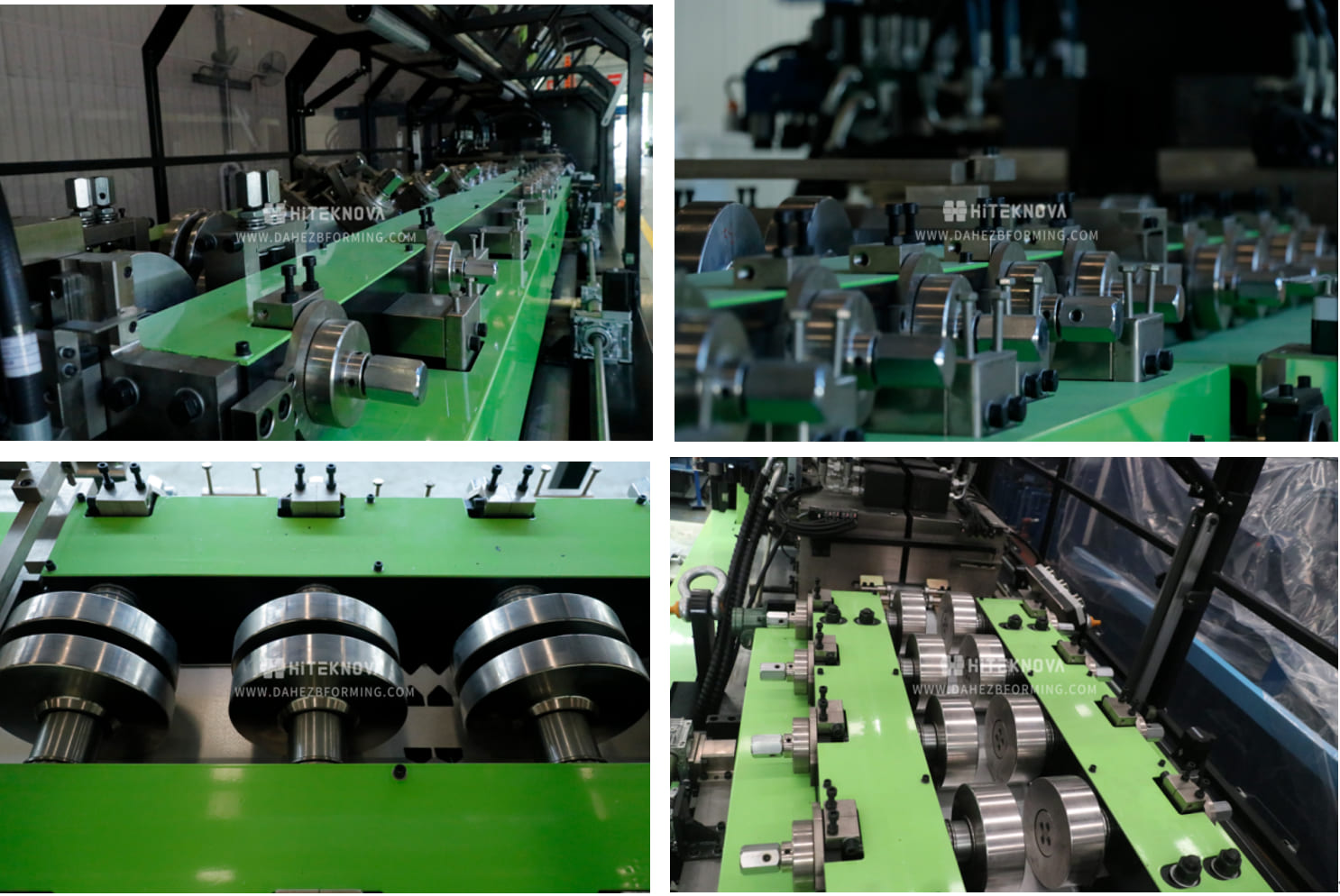

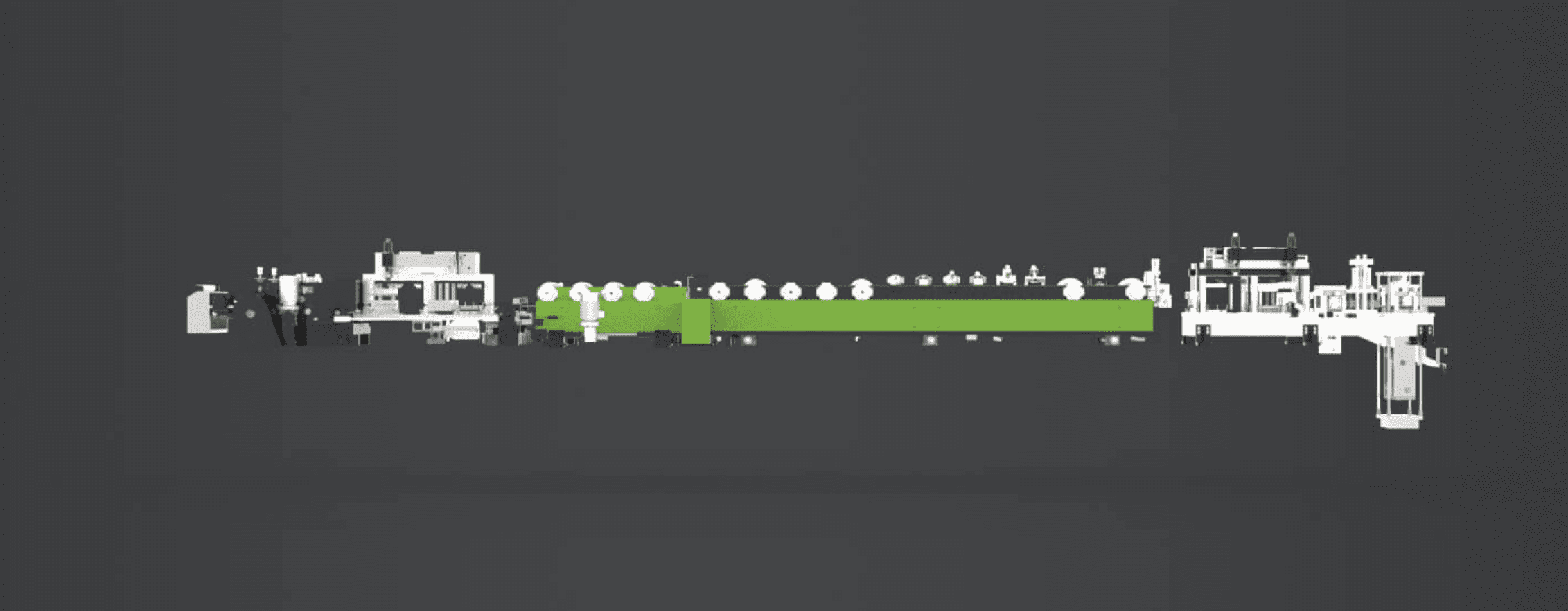

De-coiler→ Leveling Device→ Punching Device→ Roll Forming System → Punching Device and Cutting Device →Out-let table

The weight of the Machine: About 10T

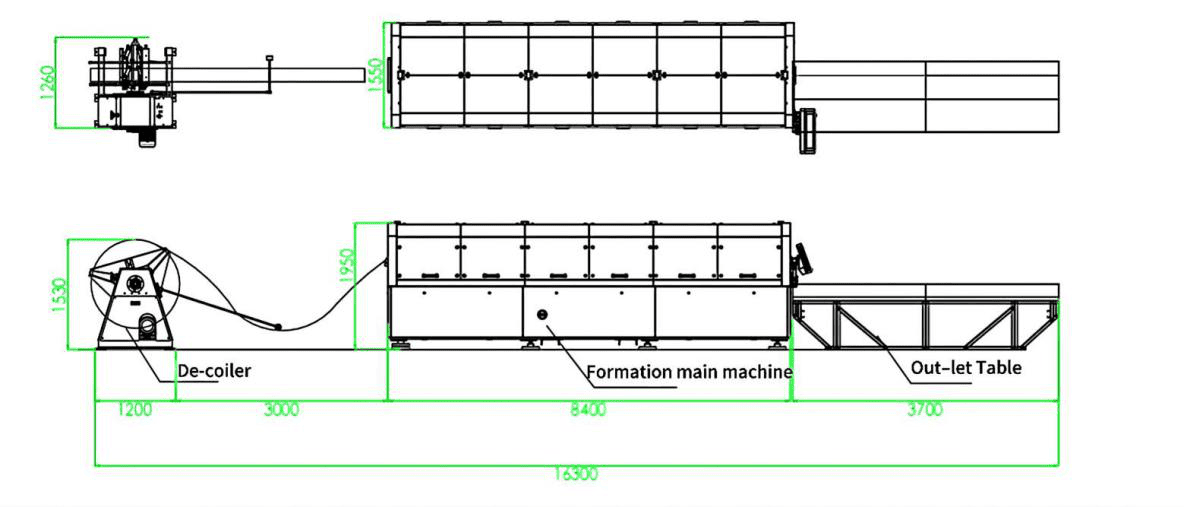

The dimension of forming parts: (length) 8.5m x (width) 1.55m x (height) 1.95m (334.64*64.02*76.77 inch).

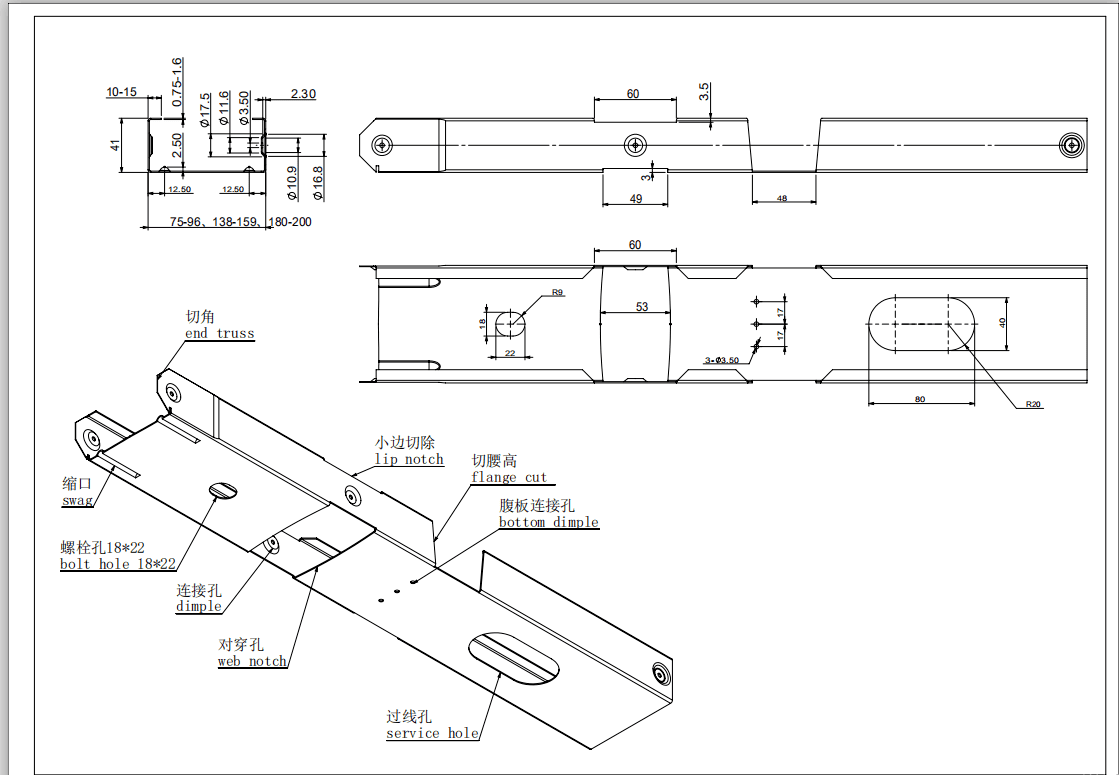

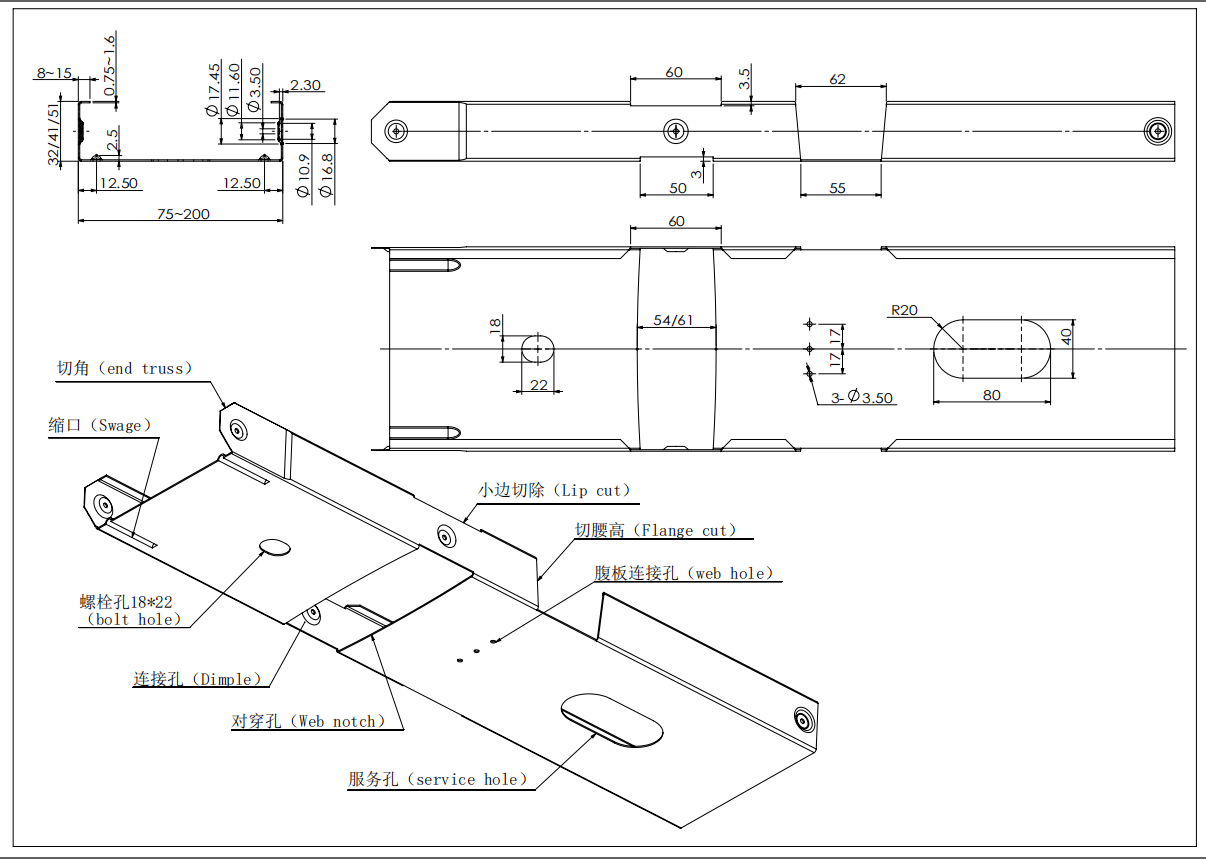

Profile Drawings

1. Custom Service Holes and Slots available on request
2. Custom Bolt Hole sizes available on request
3. Custom Web Holes available on request
4. Custom Lip cut and Flange cut available on request

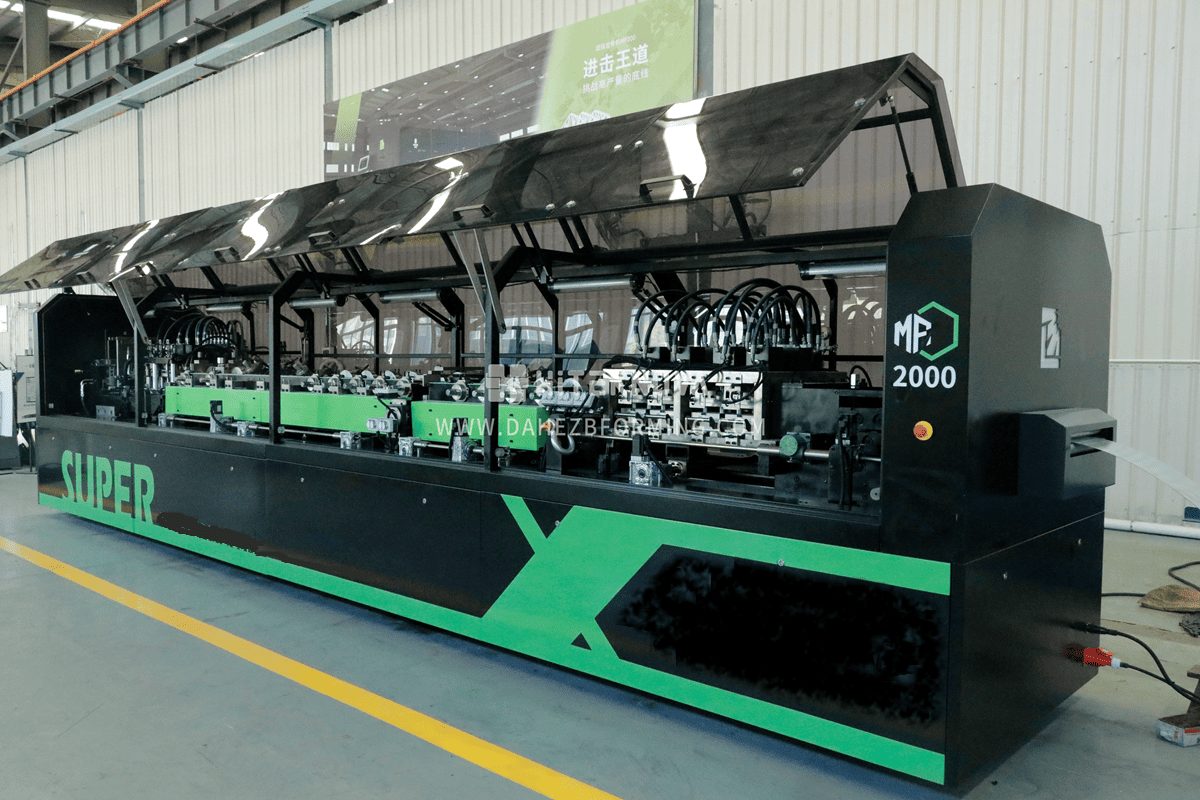

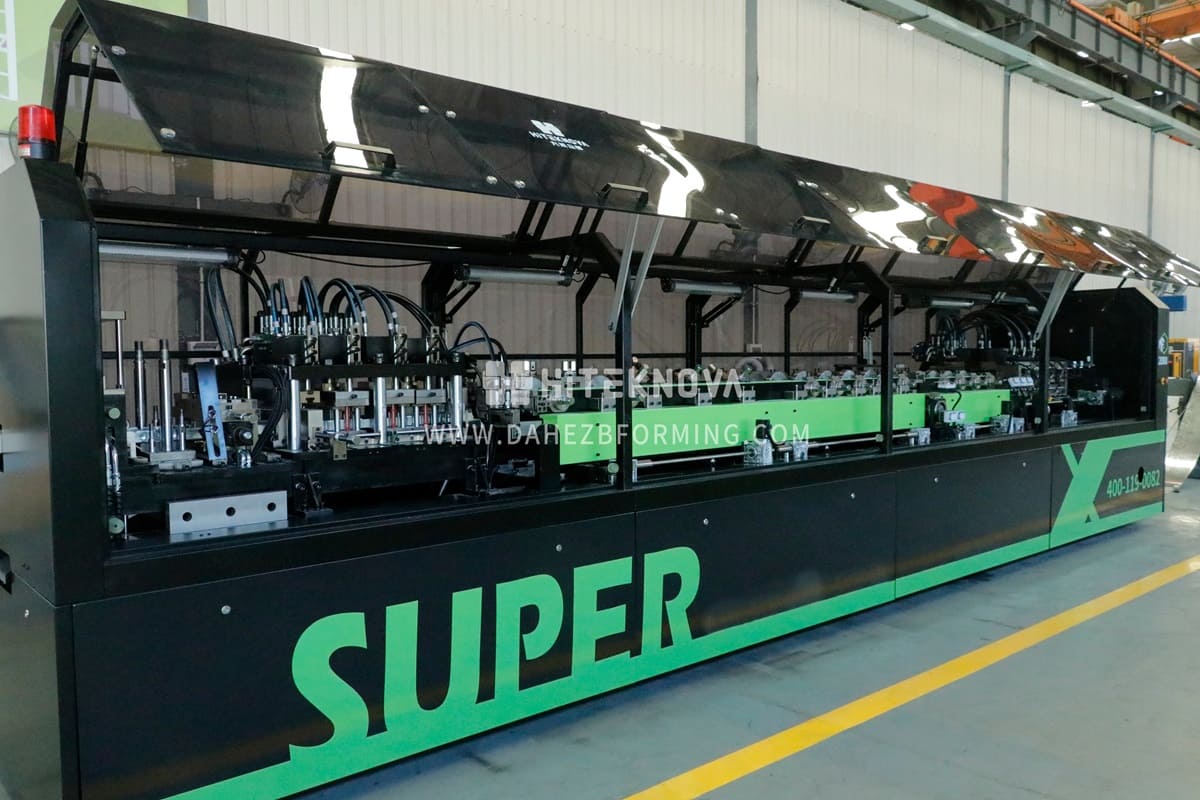

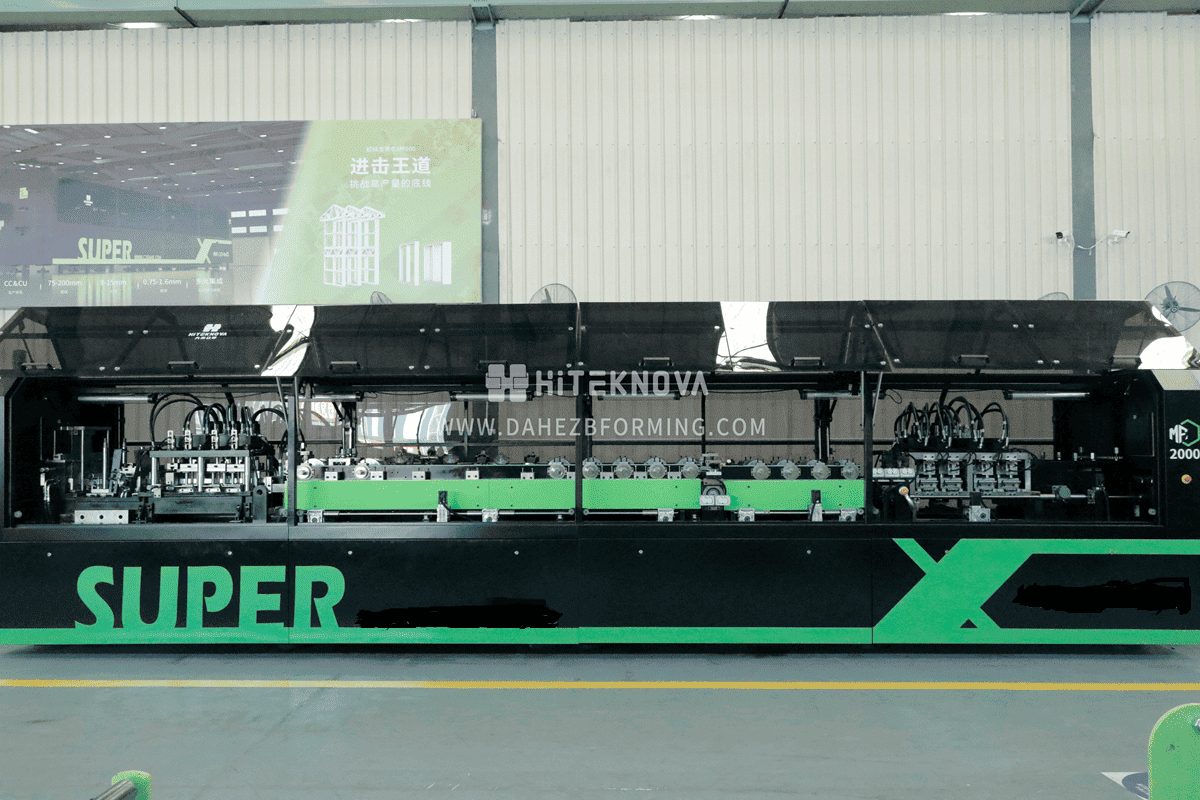

Machine Detail

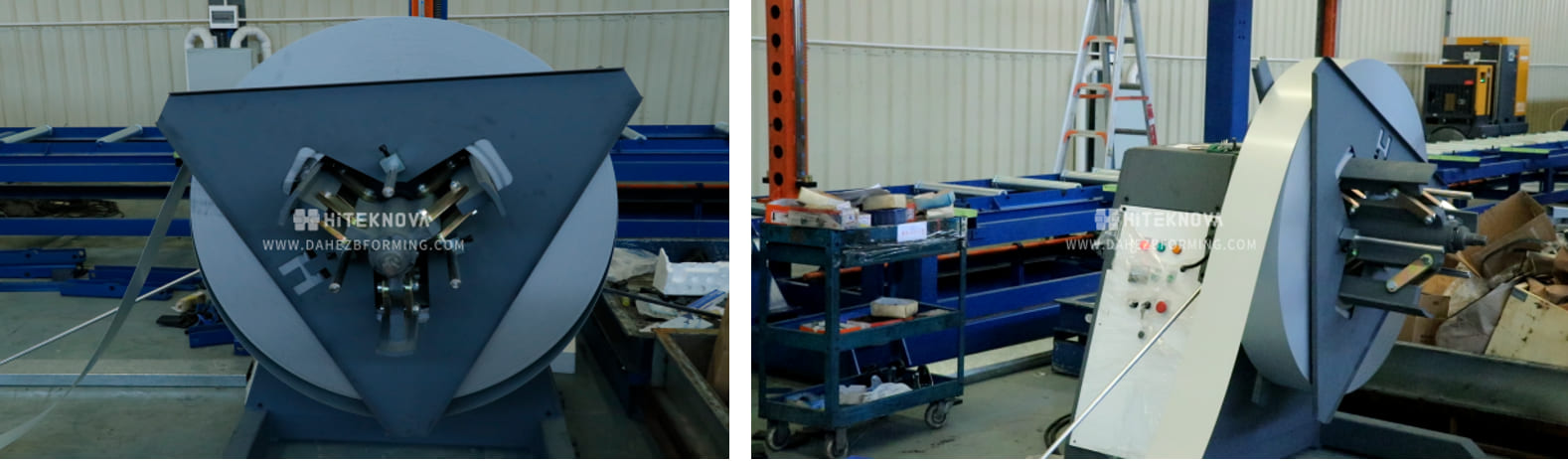

Use the manual automatic De-coiler, the center is stretched outward to ensure that the raw materials are not loose and enter more smoothly.

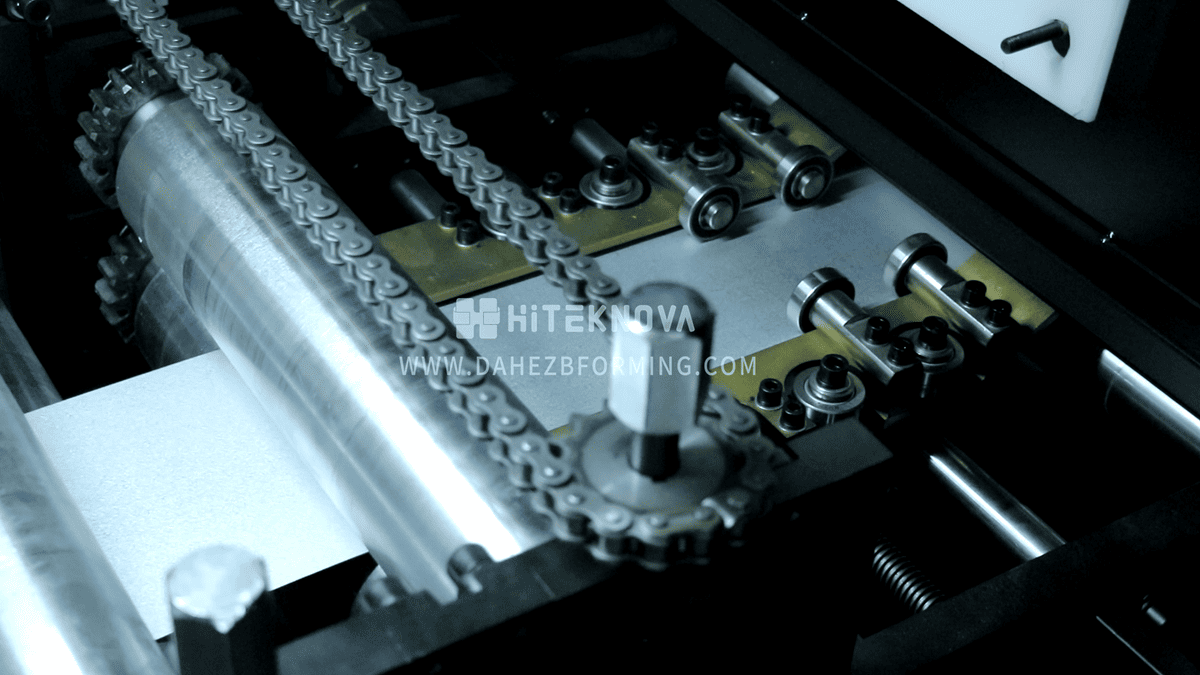

Dahe’s leveling device is composed of the above two groups and the following three groups, which can make the material smooth well, and the guide wheel ensures the stability of the feed.

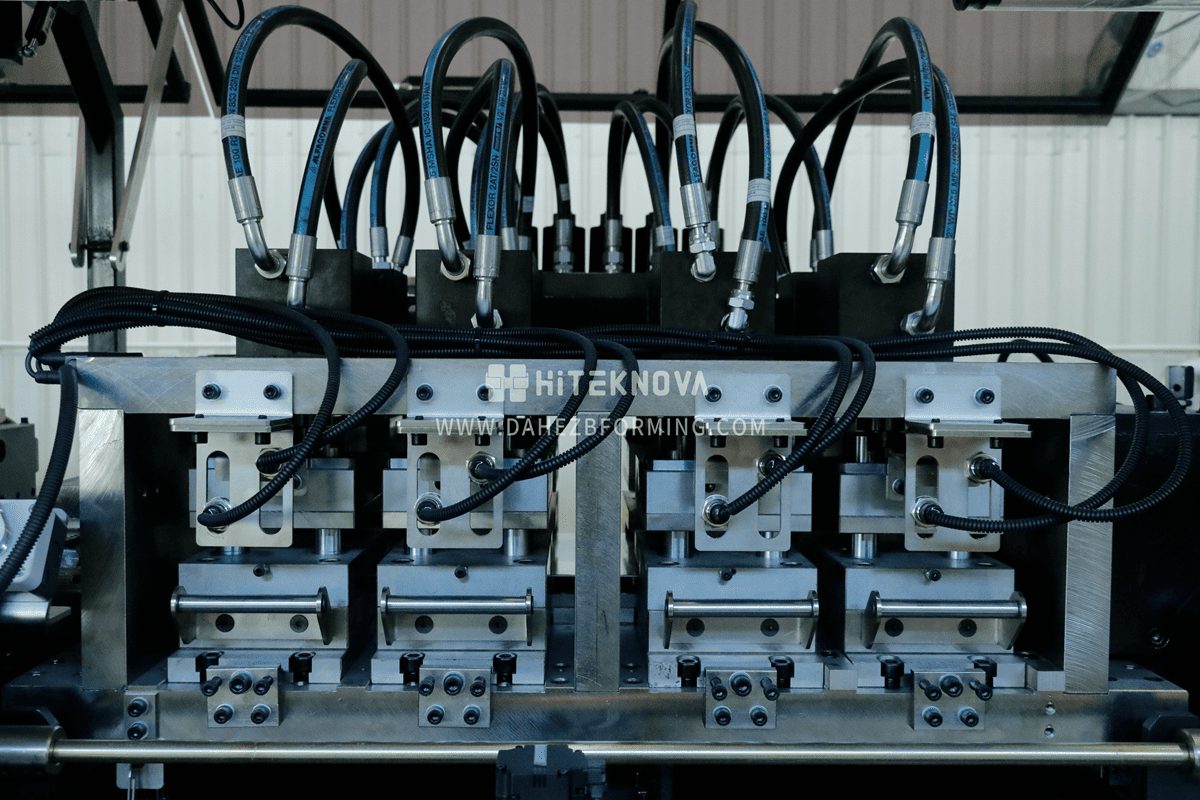

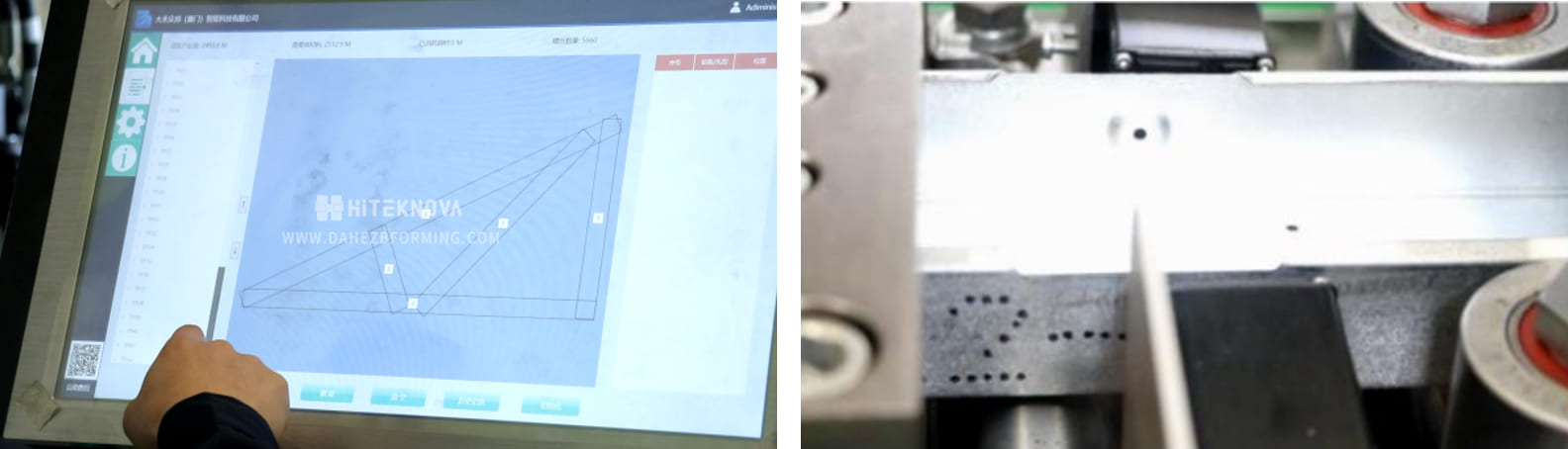

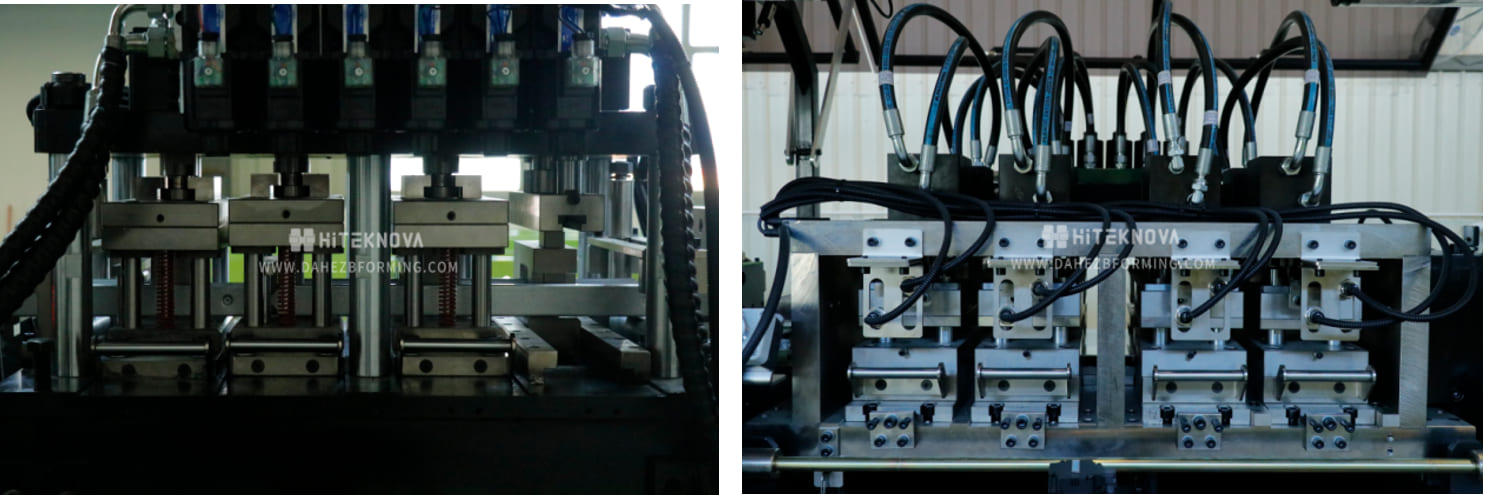

Equipped with our servo motor drive, it makes punching more intelligent, fast and convenient, and can be applied to multiple pass types: Dimple ,Web notch ,Service hole ,Web hole ,Flange cut ,etc. And the Punching precision is within +/-1mm.

In the case of idling, the maximum speed can reach 35 m/min, depending on the material properties and the punching process, the speed will be different. Equipped with straightening, 17 composition, CNC machining and other functions, the product out of high precision, fine polishing electroplating, beautiful and practical.

Using 16Mpa hydraulic pressure, it can cut Cr12 and Cr12MoV materials.

Marks and Item Number are available to be printed on the flange side for easy assembling pieces to pieces.

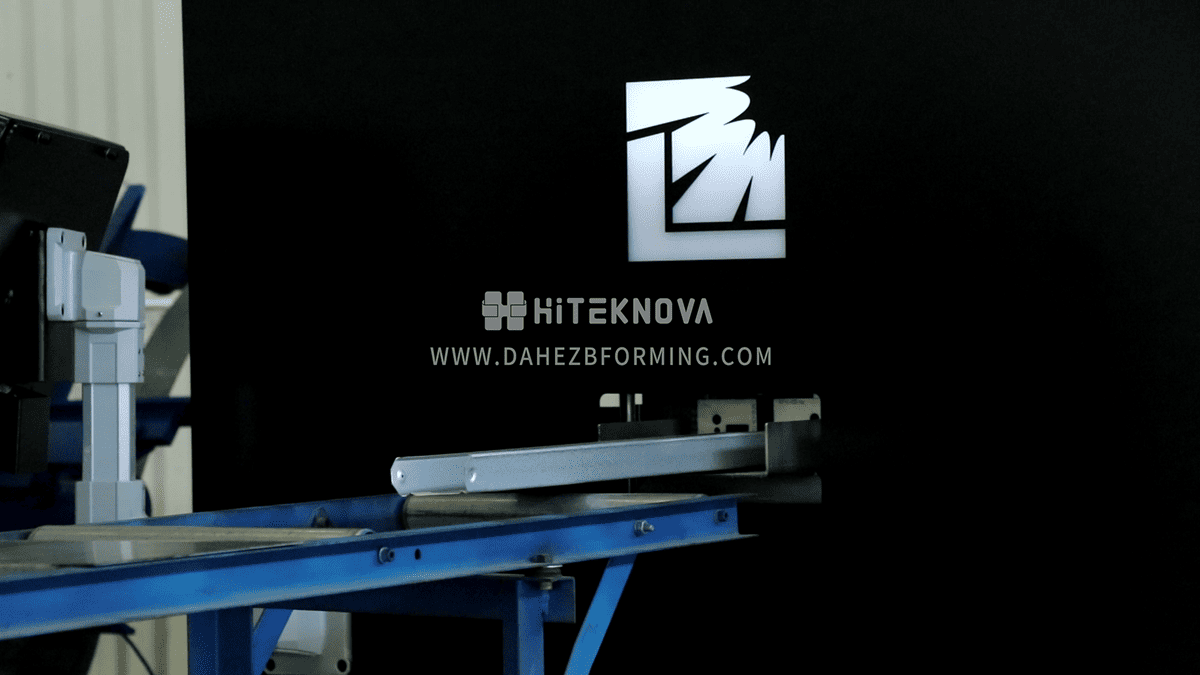

Up to 4 meters of supporting table, to ensure that the finished steel shape does not change, the size does not change, easy to pile and place the finished products behind.

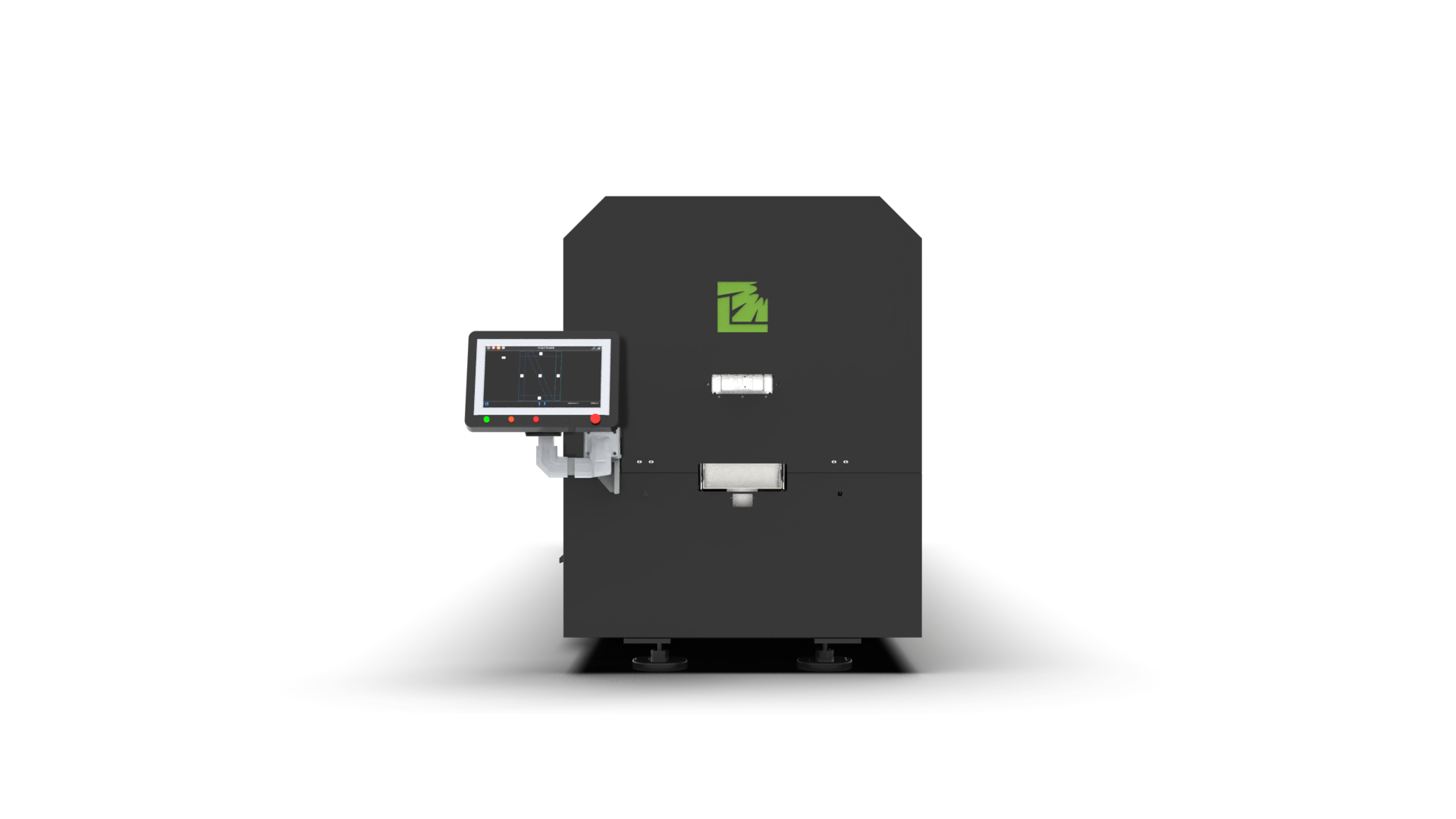

Safety Guard covers the whole machine to ensure worker’s safe.Each parts of safety guard is linked with lock.

The overall use of black, green and white embellishment, more suitable for the factory easy to clean, simple environment.

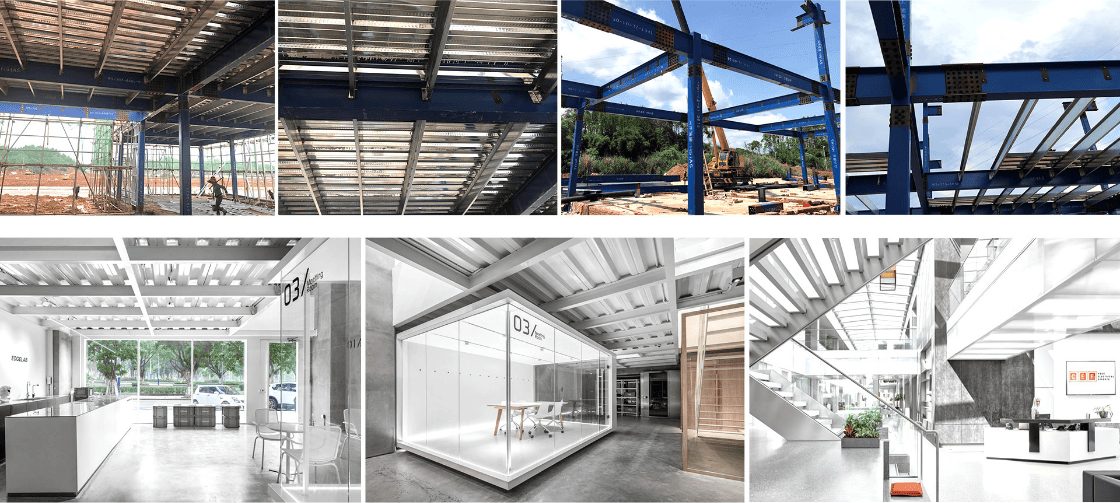

Application

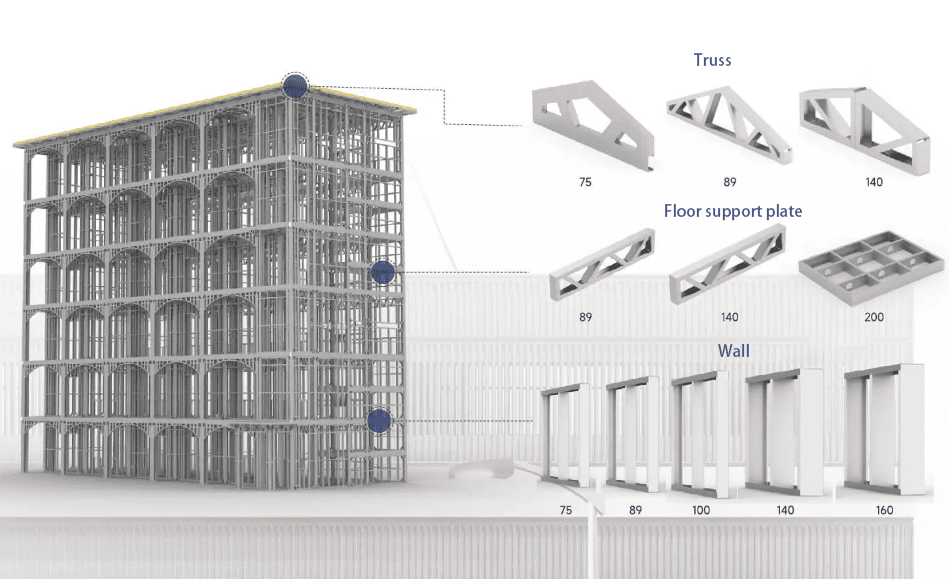

• 1-3 story residential buildings and villas
• 1-6 story apartments
