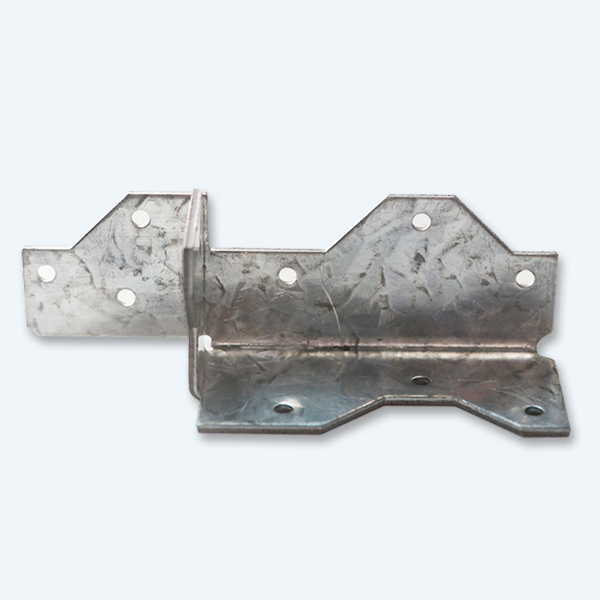

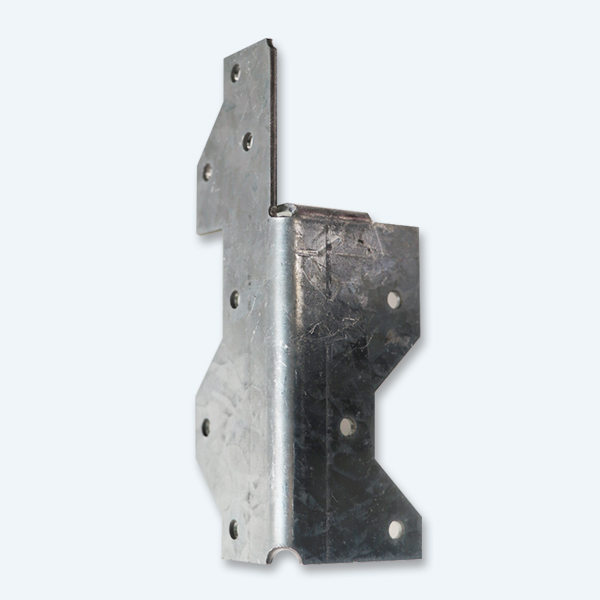

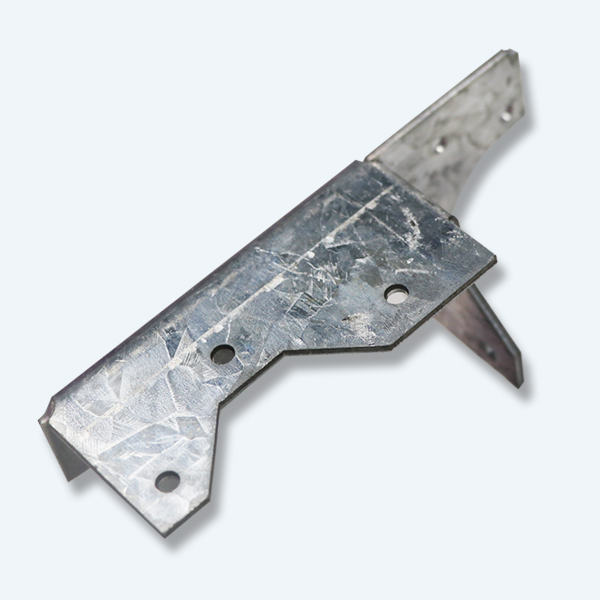

Truss connect parts

Truss connect parts

Model：HJ115-20

Dimensions：115*79*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation instructions

Truss connect parts, normally, used in the connection the wall and the truss, according to the installation station can be used in the inner wall or external wall with thin flat or round head washer drlling screw, empty holes can be used to connect other wall. There are no other parts on both sides of the connecting truss and the upper of the wall, the outer hexagonal drill tail screw can be used to fix it.

Introduction

The optimized design of the Truss connect parts, makes the side wider, improve the problem that the original hole is not on the LGS. The truss connector is divided into two pieces (left and right). And the empty holes in the direction of the connecting wall can be used to connect other walls.

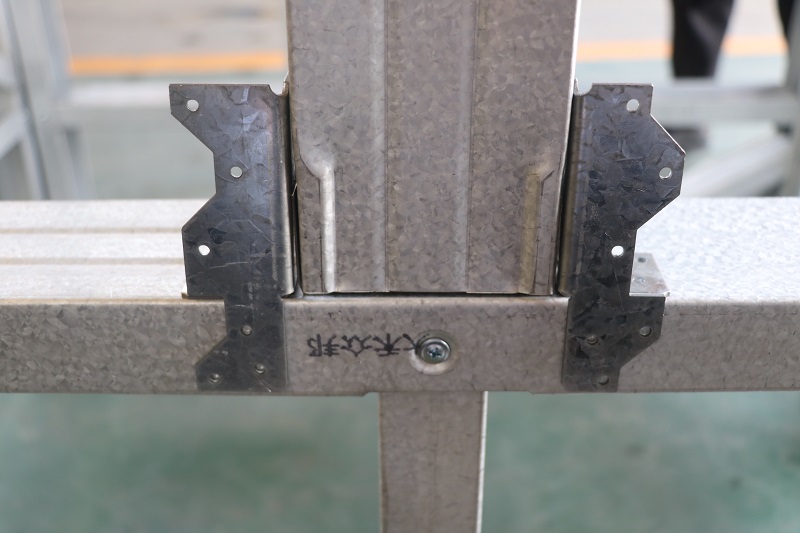

Installation Diagram

Connect the truss and wall
