T type connect parts

Model：TX270-15, TX270-20,

Dimensions：270*10*1.5, 270*10*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation Instructions

T type connect parts, used in connection the T type top of walls with thin flat or round head washer drlling screw, no less than 5 screws for each end,.

A Top wall LGS

B Top wall LGS

A Top wall LGS

B Vertical wall LGS

T type connect parts

Introduction

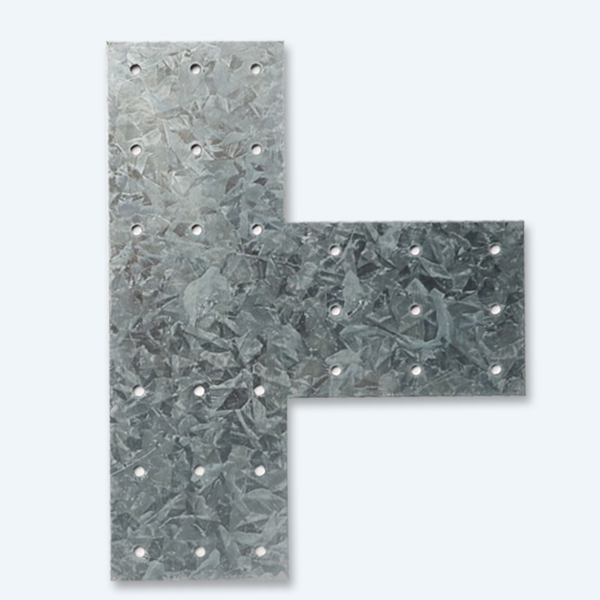

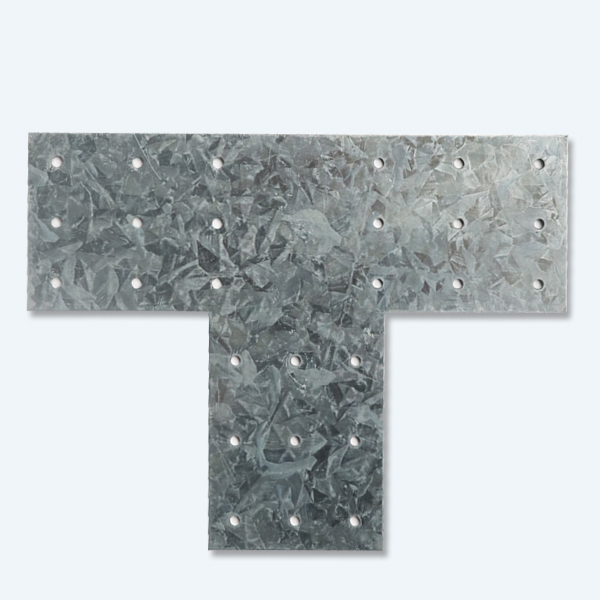

T type connect parts, thickness is 1.5mm and 2.0mm, pre-punching, dislocation arrangement, round corners treated, safe and smooth.

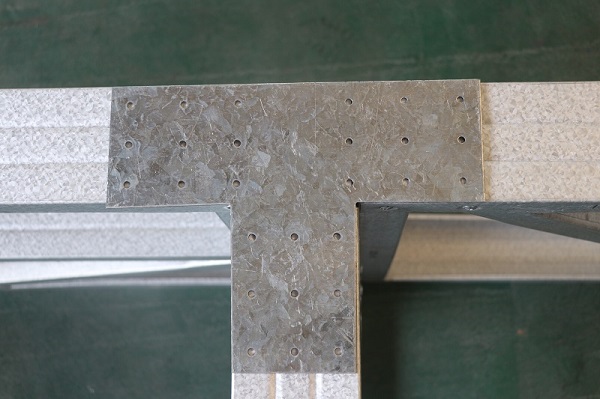

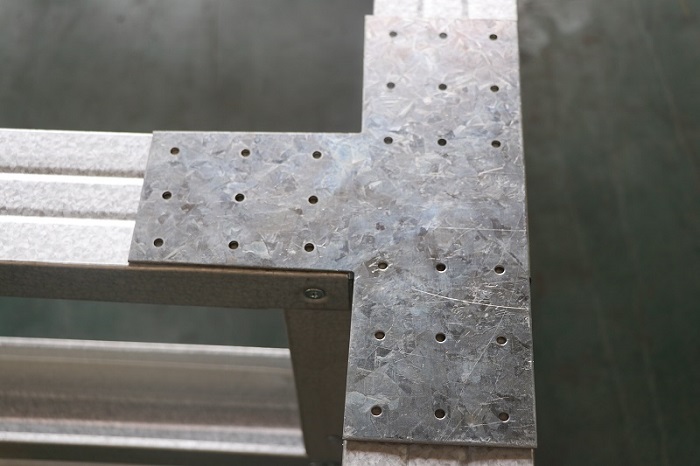

Installation Diagram

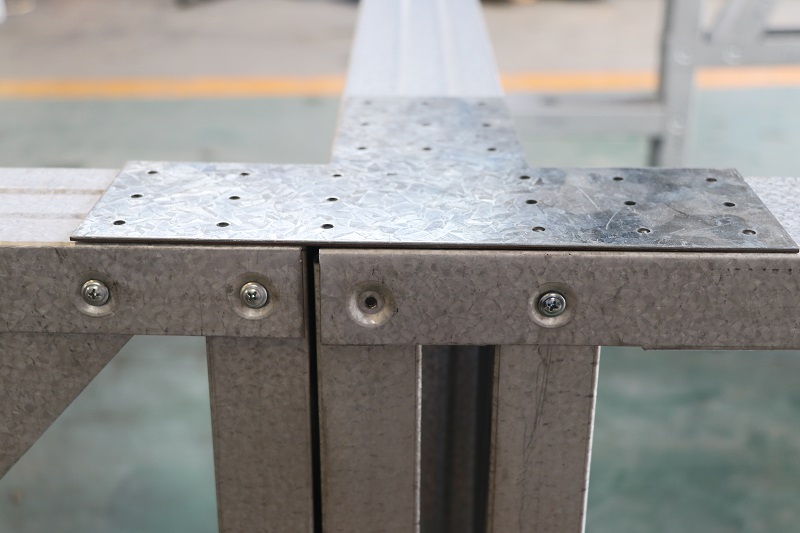

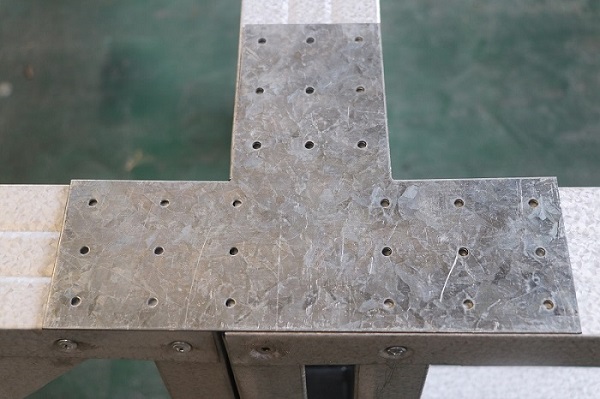

Top vertical walls connect
