Straight Plate connect parts

Model：ZB210-15, ZB210-20,

Dimensions：80*210*1.5（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation Instructions

ZB210 series straight plate connect parts, it is used for connecting the top and side of the wall with straight and corner, it is fixed with thin flat head or round head washer driller tail screw, no less than 6 screws for each end, evenly used. Normally, 2.0 mm thick for the lower floor and 1.5 mm thick for the high floor layer. ZB121 may be replaced on the compliance with relevant national standards.

Wall Top LGS.

Straight Plate connect parts.

Wall Vertical LGS.

Introduction

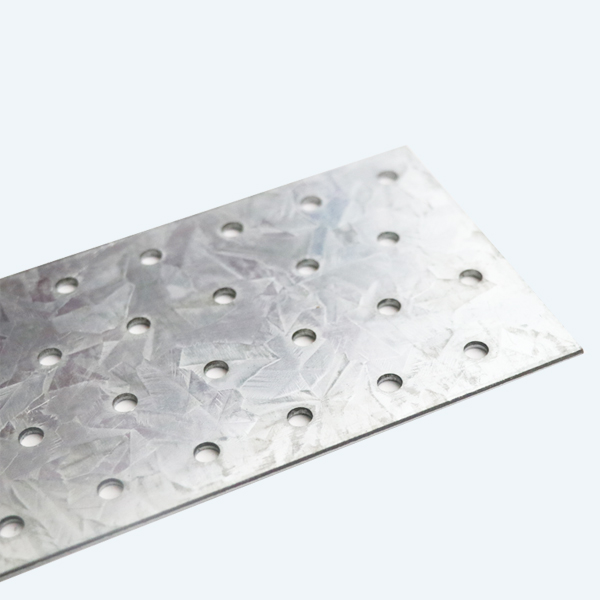

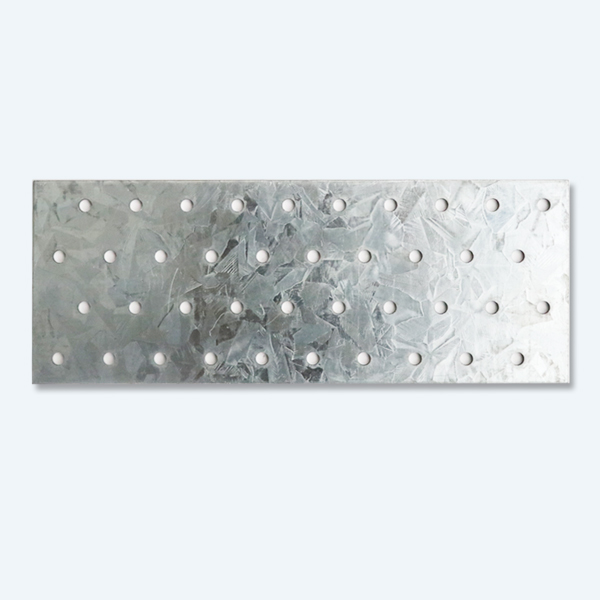

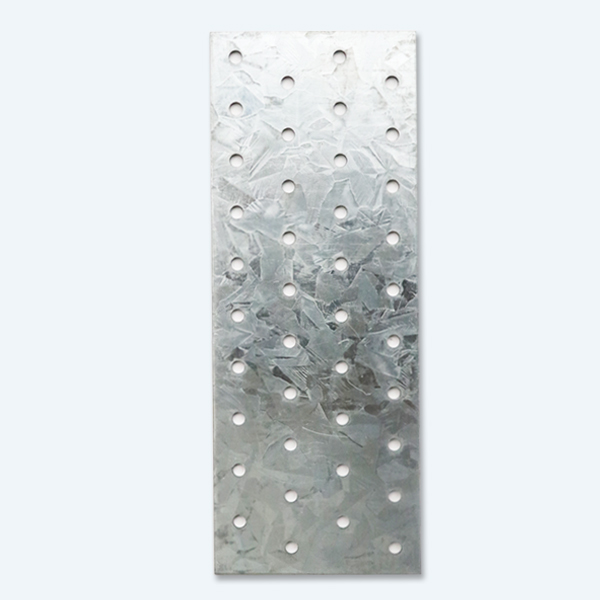

ZB210 series straight plate connect parts, thickness is 1.5mm and 2.0mm, pre-punching, dislocation arrangement, width of 80mm, little less than the total height of the two LGS, can be used vertically, connect the two walls, round corners treated, safe and smooth.

Installation Diagram

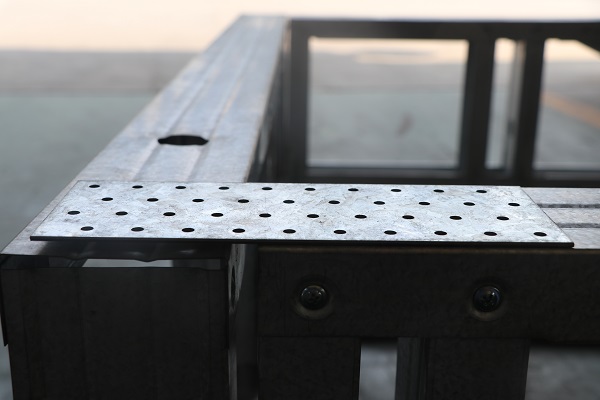

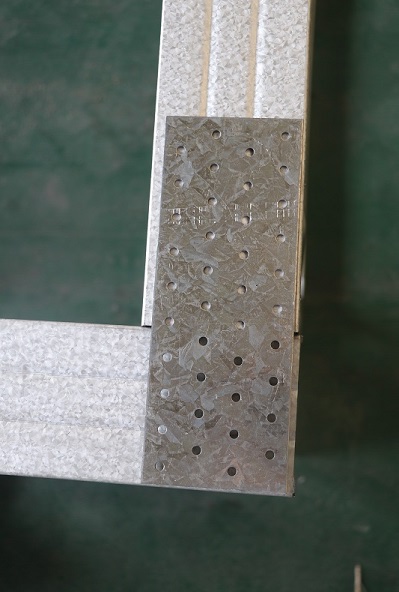

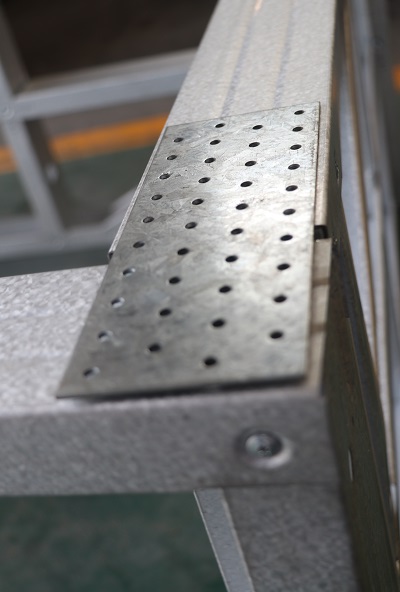

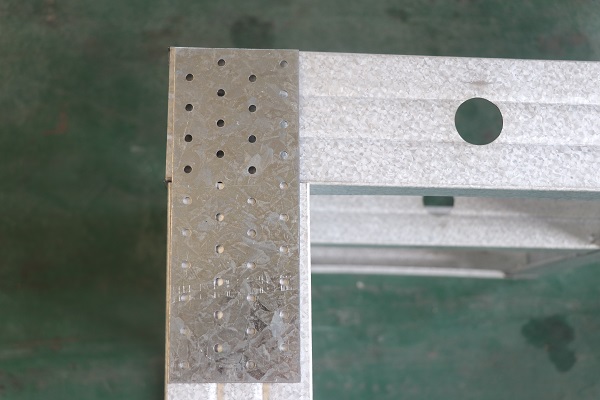

The top of 2 walls connect – The right angle of walls connect – The side of the vertical walls connect
