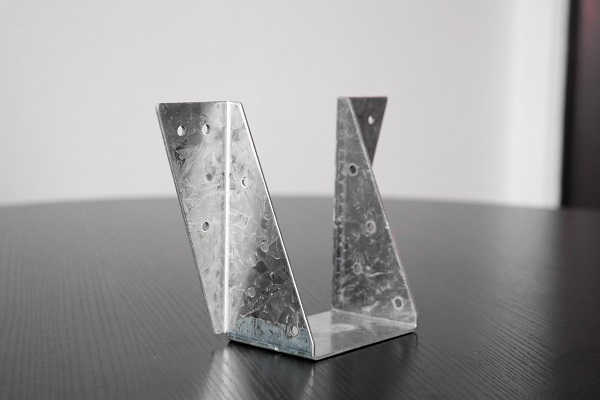

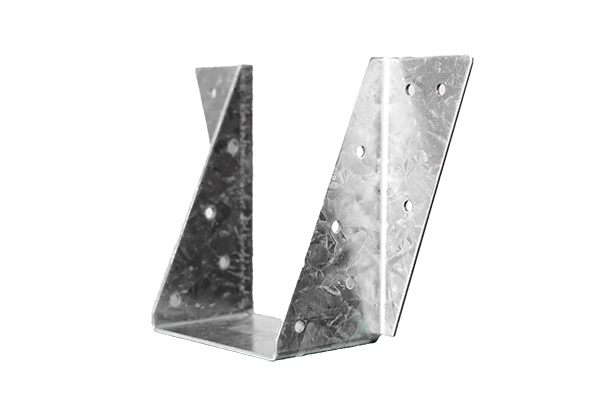

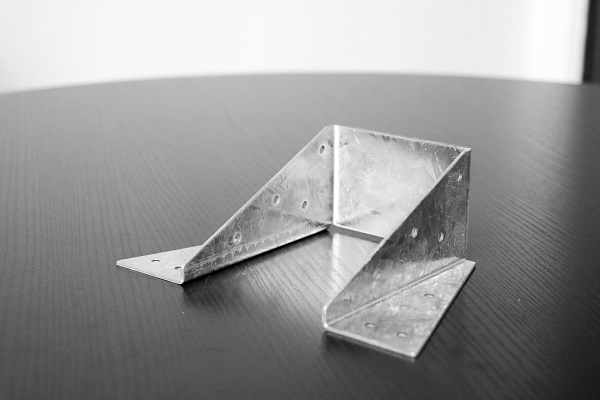

Roofing truss strengthening connect parts

Model：WD194-20

Dimensions：194*130*2.0（mm）

Material:  Q345 (Grade: SGH340 – Z275)

Zinc layer:  2 sides 275 g/M2

Installation instructions

The opening direction of the Roofing truss strengthening connect parts is from the bottom to the upper clamping truss, fixed with the outer hexagonal drilling screw. If one side of the Roofing truss strengthening connect parts flattened with the back of the roof vertical LGS, also the outer hexagonal drilling screw fixed here to enhance the snow load capacity.

Layer, Truss, Roofing truss strengthening connect parts

Introduction

Roofing truss strengthening connect parts, designed for roof truss and roof plate connection, most people are a large number of using corner connect parts to connect, it is not entirely correct, the snow load capacity north area consideration connected by a large number of corner connect parts, the wind area roof eaves corner connect parts will make the screw pull-out adverse state, while the Roofing truss strengthening connect parts solved the problem,

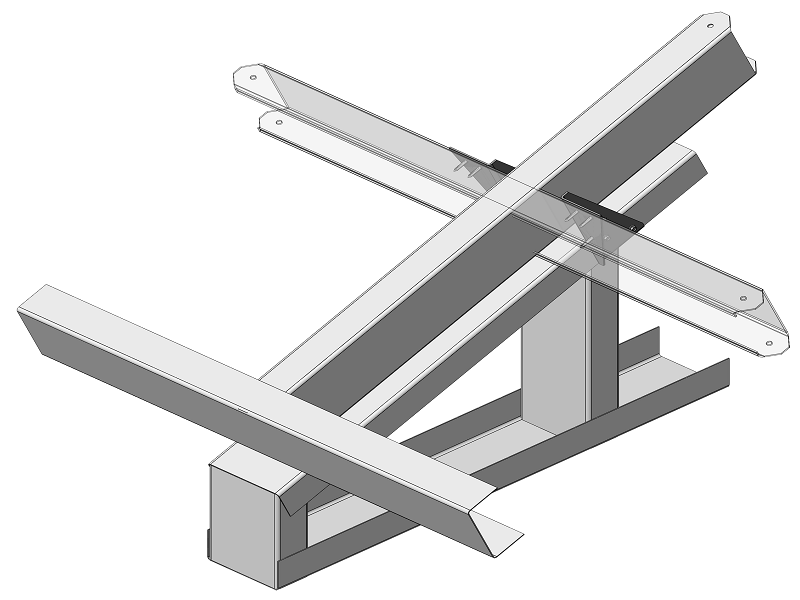

Installation Diagram

Truss and roof connect
