Multi-Profile Steel Framing System MF3005

DETAILS

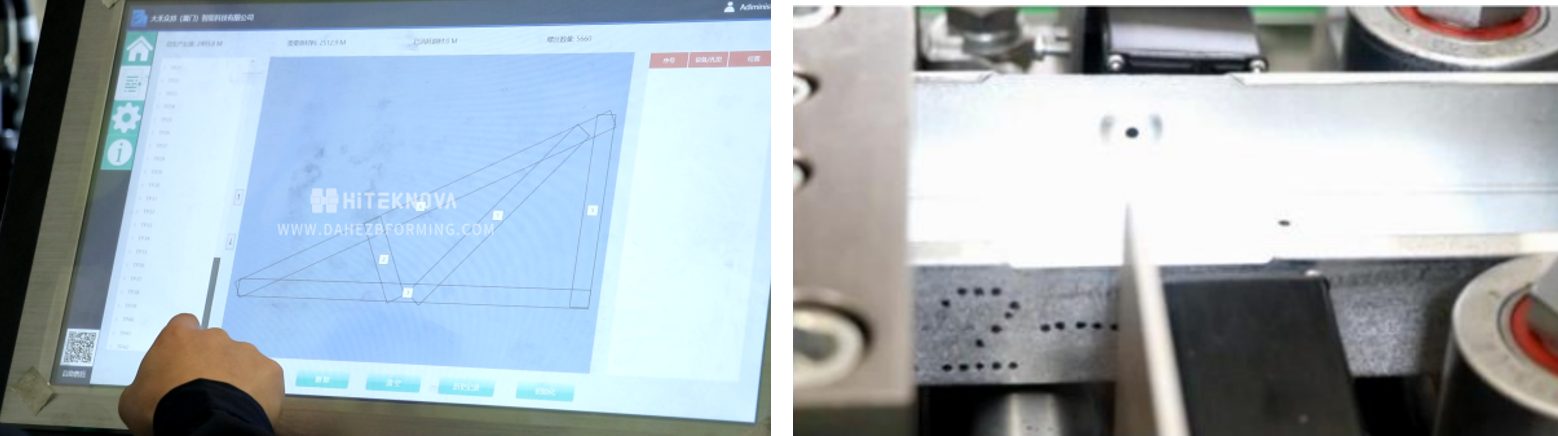

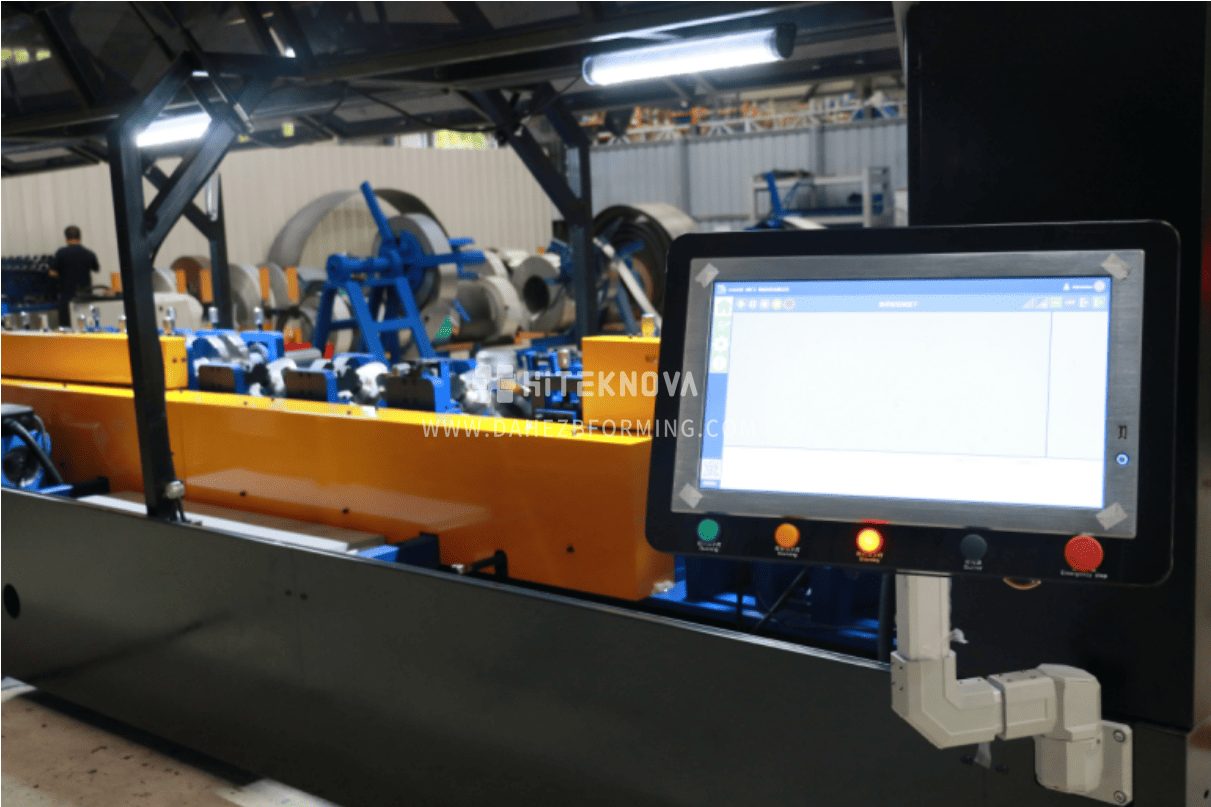

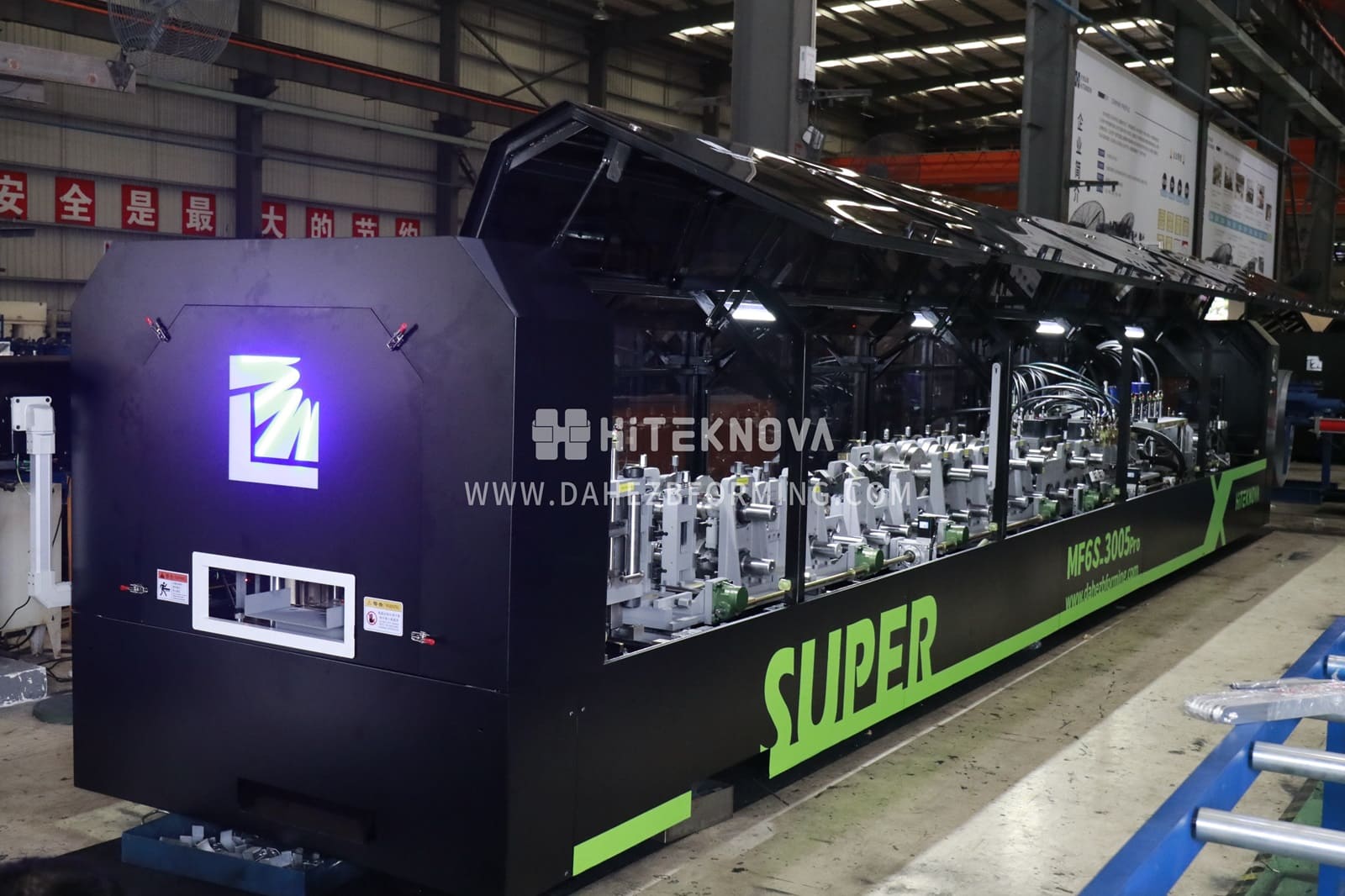

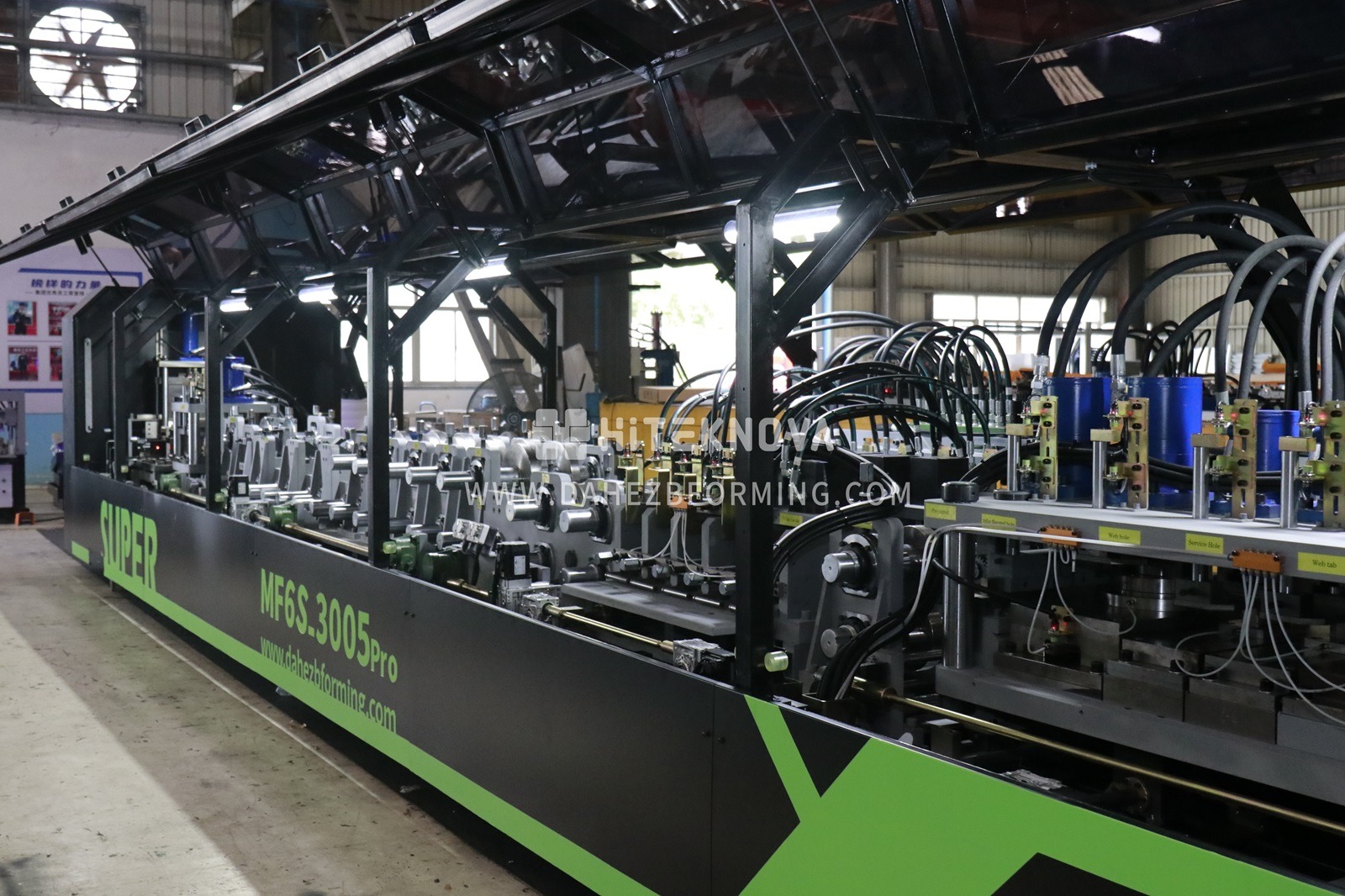

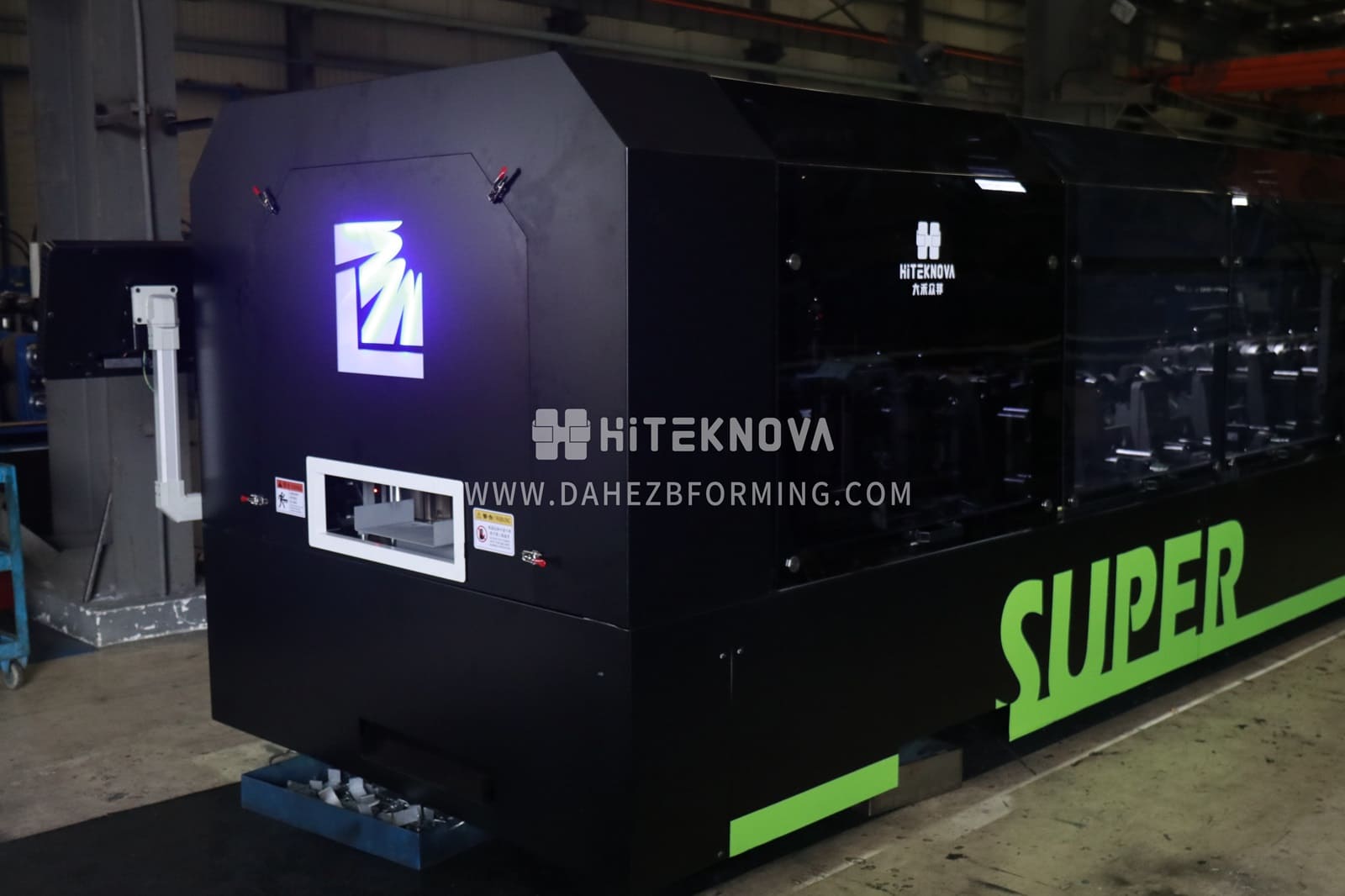

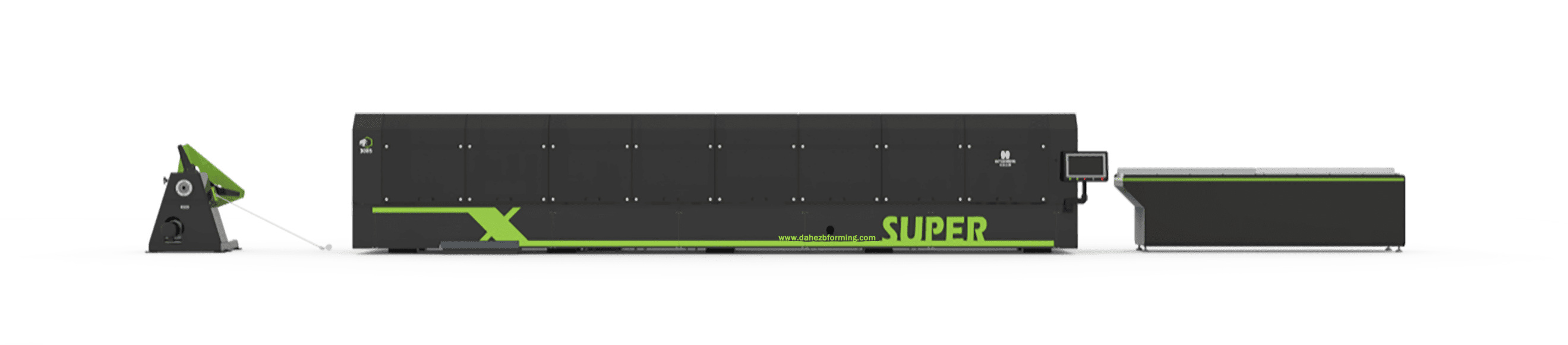

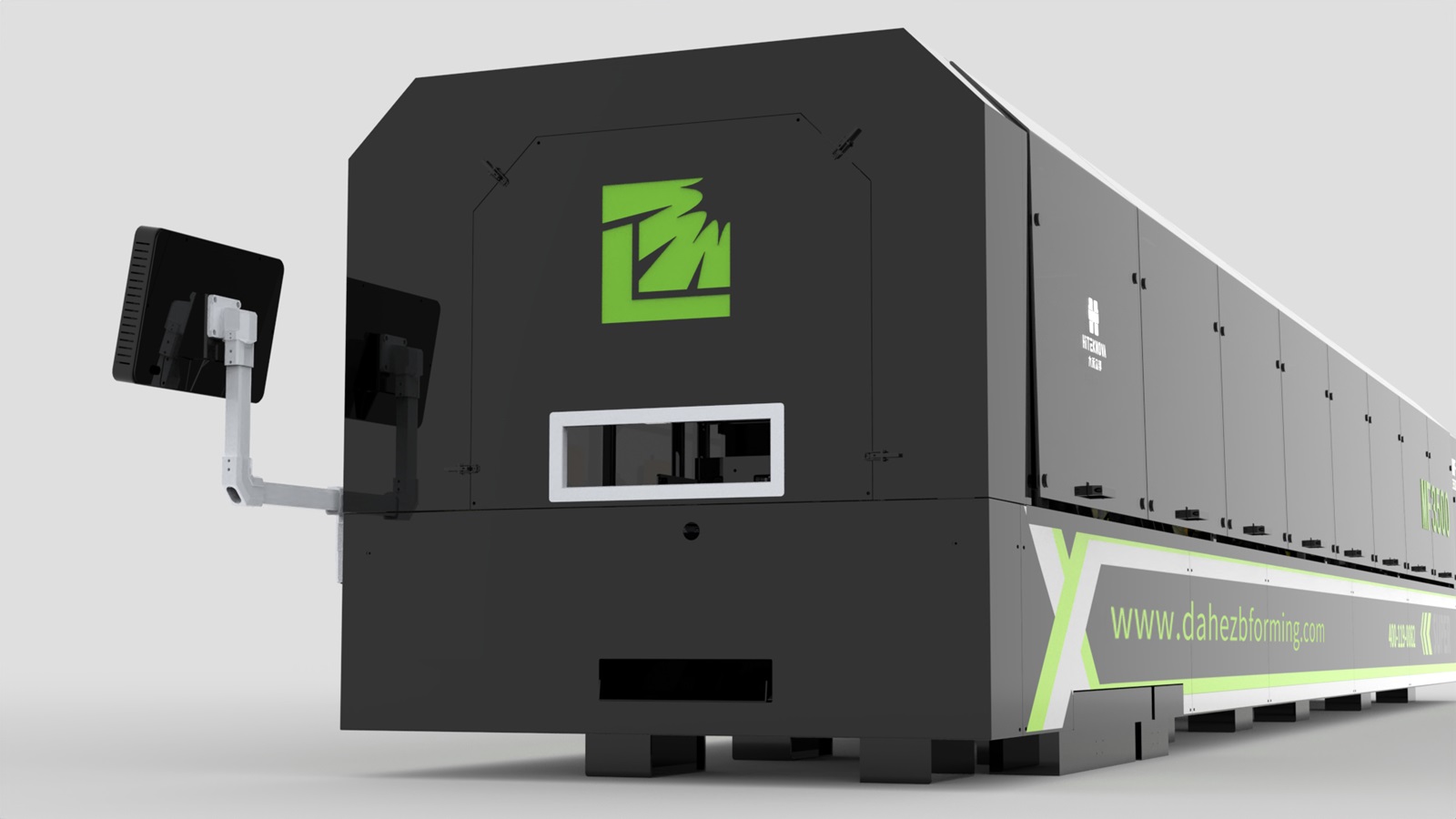

The MF6S-3005 produced by Hiteknova belongs to professional Light Gauge Steel equipment. It is equipped with an intelligent version of the servo motor and can be compatible with construction drawings from different design software. Paired with digital industrial control software, it achieves high efficiency and high standards and is highly intelligent.

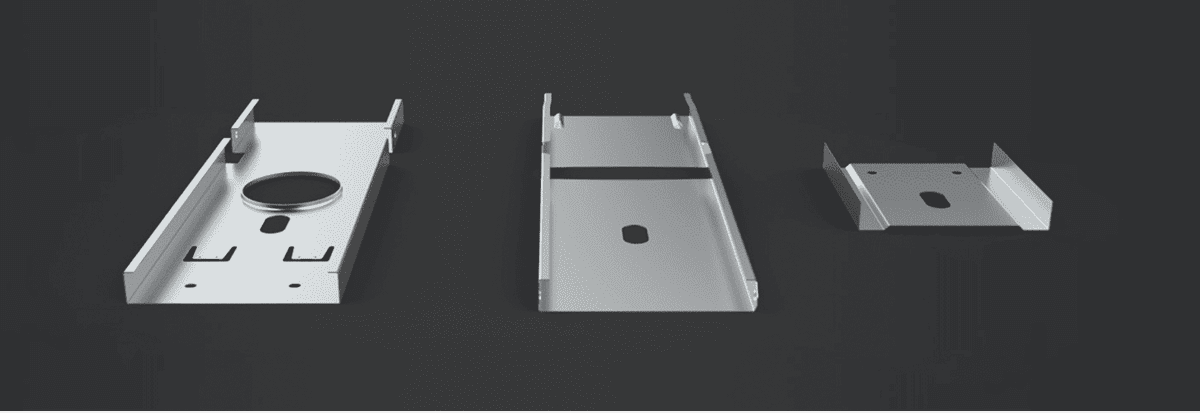

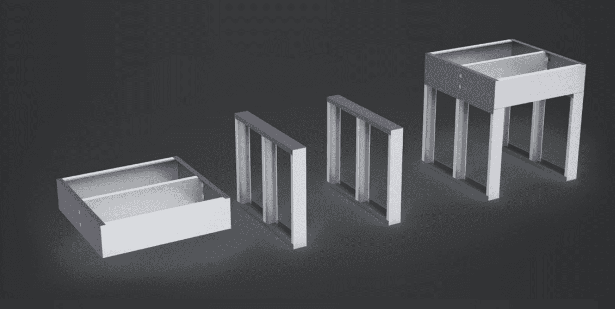

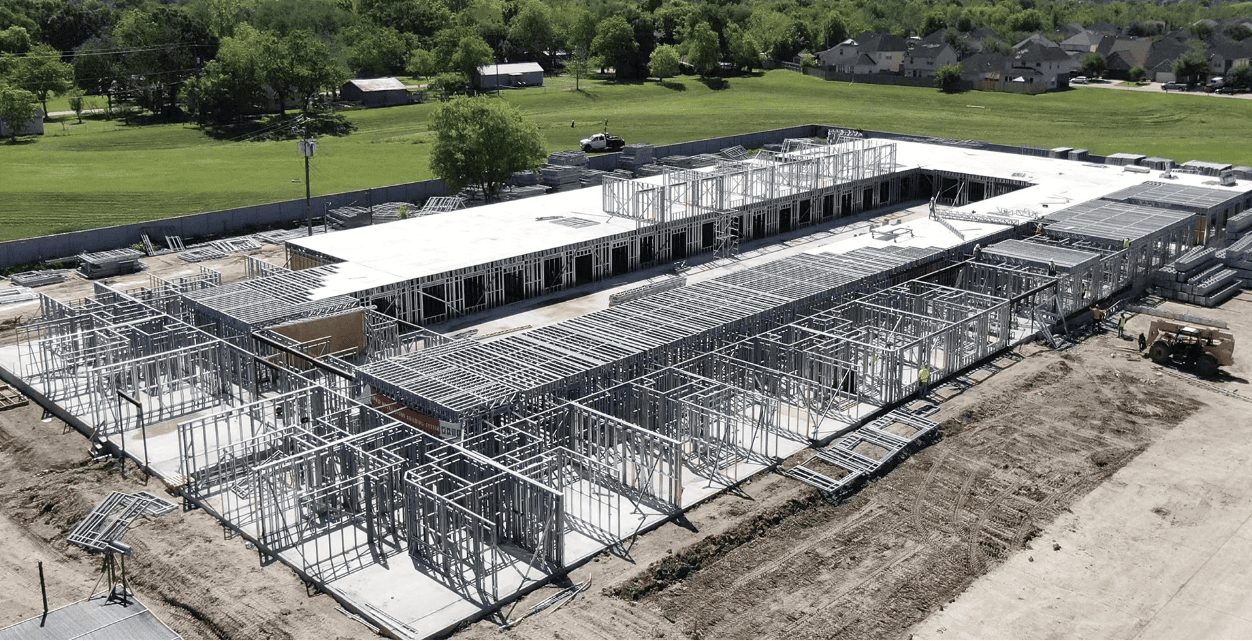

Our MF6S-3005 is specifically designed for manufacturing Light Gauge Steel, trusses, walls and floor slabs for high-rise residences, villas and apartments. It focuses on the production of floor slabs for 1-3-storey residences/villas, 1-6-storey apartments and 1-8-storey commercial buildings. It is an ideal choice for the production of high-rise floor slabs and can be suitable for CC & CU type systems. It can provide you with a fully automatic building system that features low cost, less waste and multiple specifications.

Specification

CC/CU:

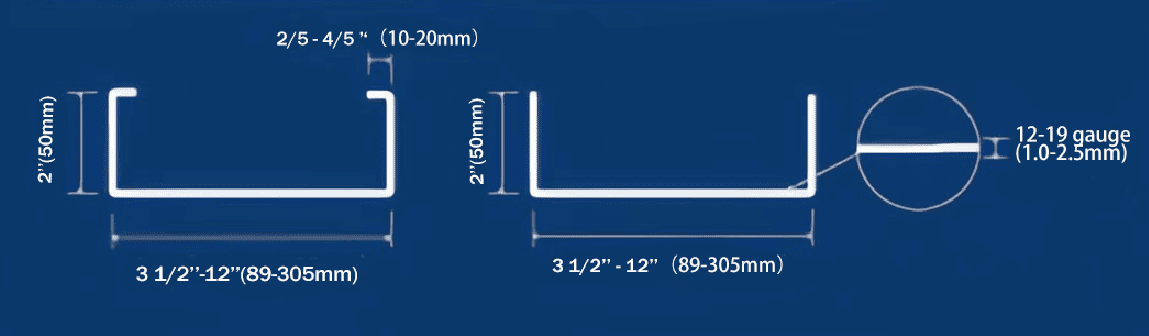

“U” Profile Dimensions

Profile Height (flange): 50-65mm

Profile Width (web): 89-305 mm

“C” Profile Dimensions

Profile Height (flange): 51 mm

Profile Width (web): 89-120/121-150/181-210/271-305 mm

Profile Lip: 10-20 mm

Material Thickness: 1.0-2.5 mm，Q235、G550（Thickness less than 1.6mm）hot-rolled galvanized steel strip

Changing sizes: Full-automatic (Dimensions can be changed automatically by PLC control)

Technology Parameters

Machine Weight	About 17T
Profile Shape	CC and CU
Dimension of forming parts	(length) 11.0m x (width) 1.9m x (height) 2.0m
Section steel material	Q235,Q345,G550,Hot-tied galvanized strip steel

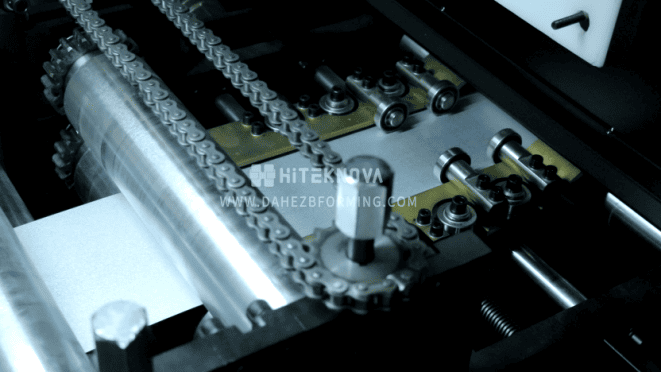

Leveling device	2 groups for upper and 3 groups for down.

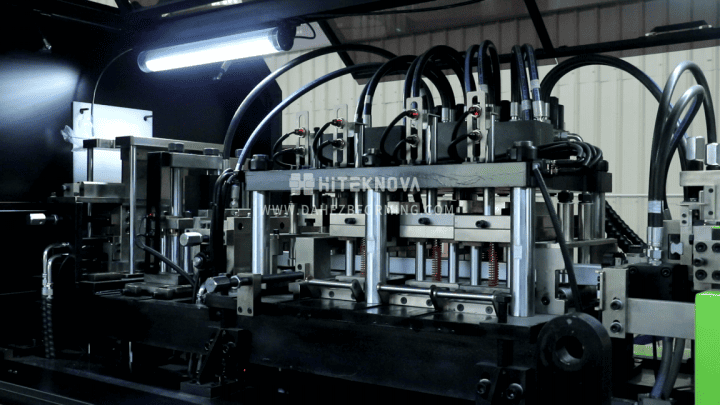

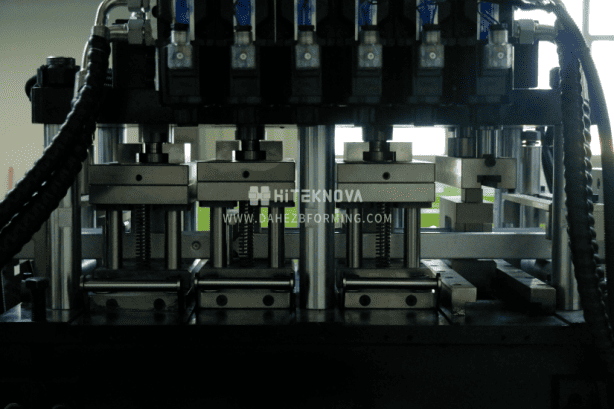

Punching type	hydraulic punching

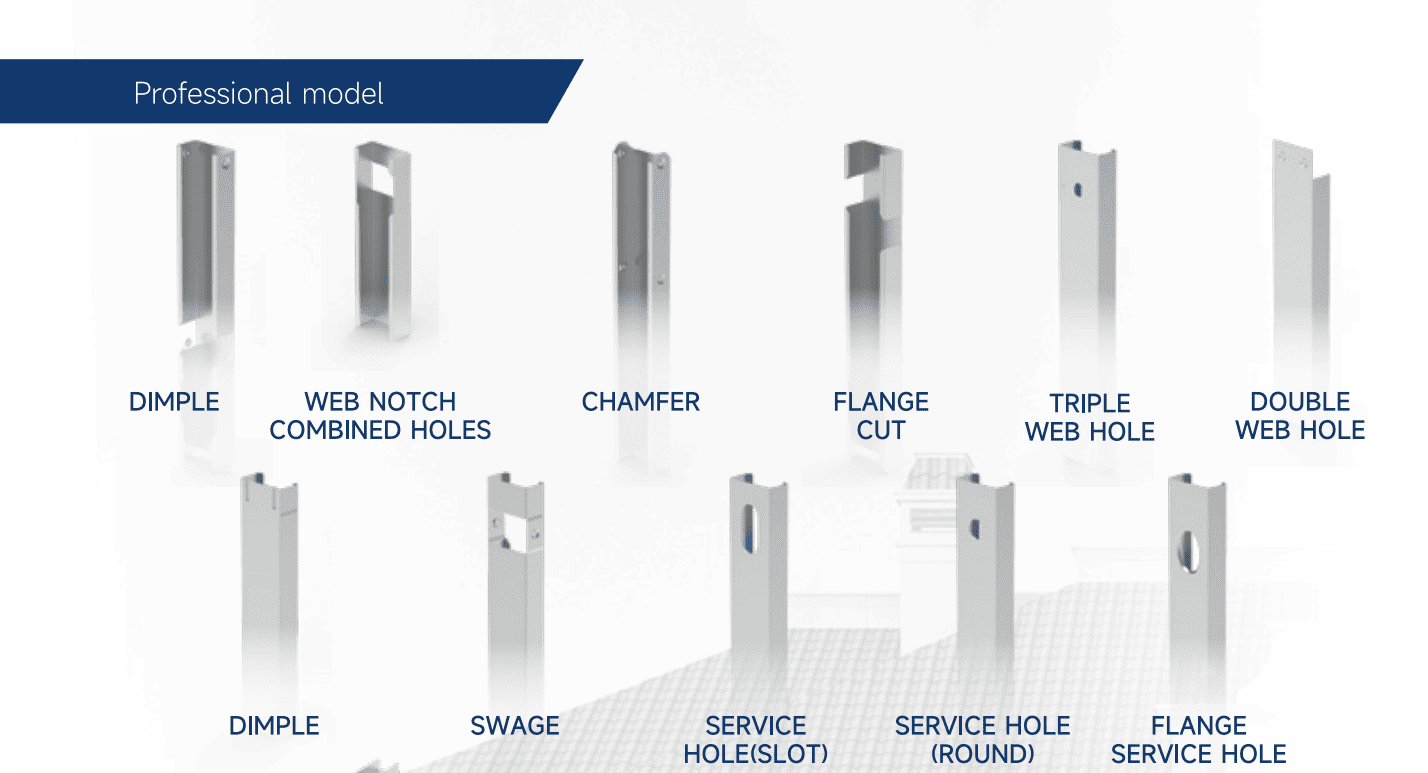

Hole Type	1、end truss 2、swage 3、web hole 4、dimple 5、web notch 6、large service hole 7、bolt hole 8、flange cut 9、small service hole 10、web tab 11、lip notch 12.Inline Expandable Punch Die (for specifications 150 and above) 13.Offline End Flanging Die；
Control system	PLC Control
External controller	1
Drive	Servo motor 22KW+arc bevel gear reducer
Main hydraulic station	Hydraulic station power 11KW+air-cooled

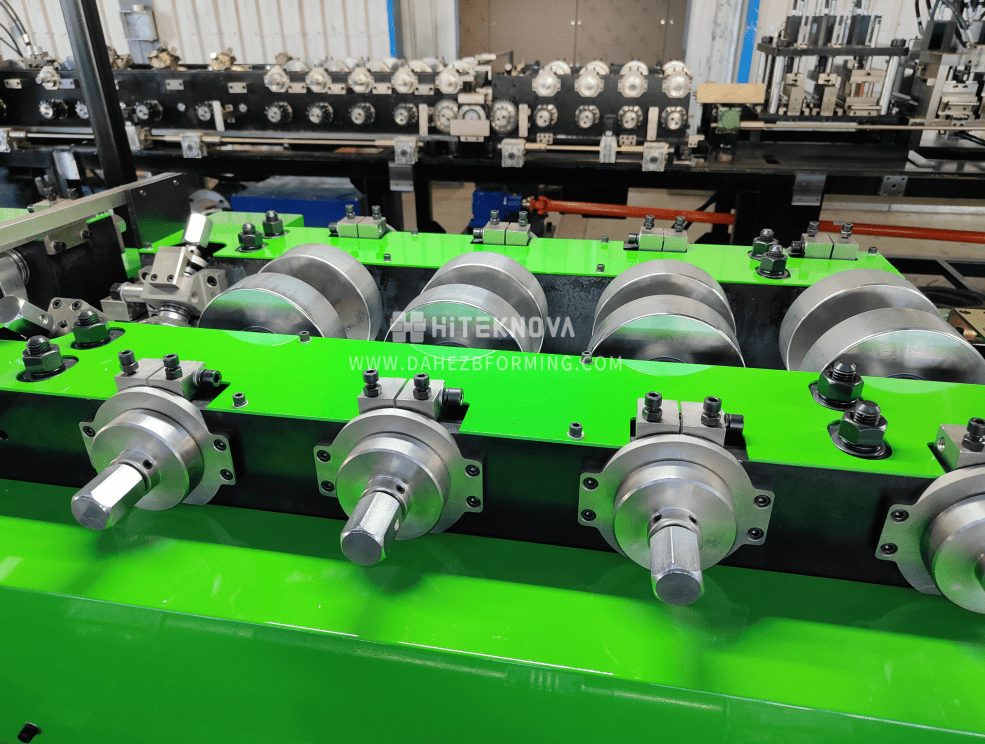

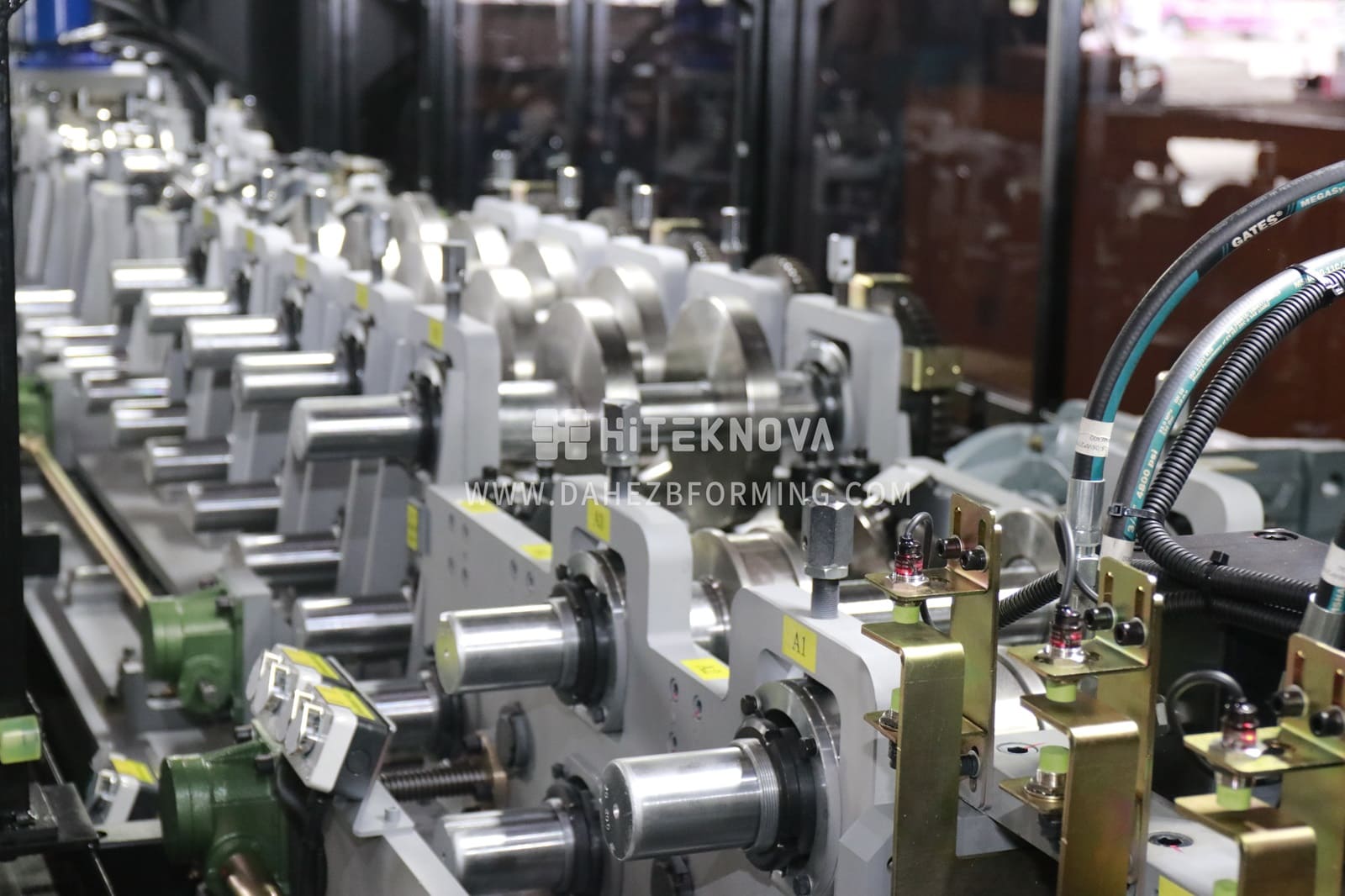

Main forming	19 Composition type
Out-let Table	12m
Cutting material	Cr12MoV
Hydraulic Pressure	16Mpa
Inkjet printing	Online inkjet printing system
Free Spare Parts	Easy wear parts
Specification book	1
Machine color	Main body gray, red trim, frame gray black, with integral protective cover

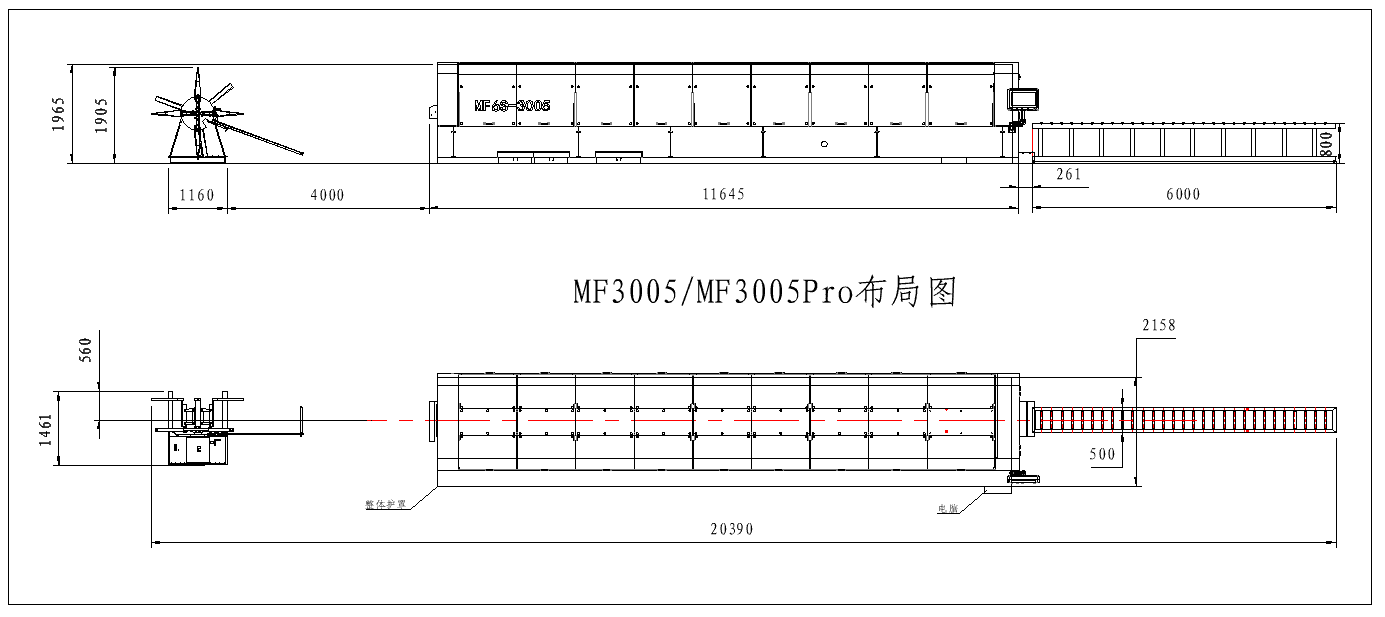

Production flow:

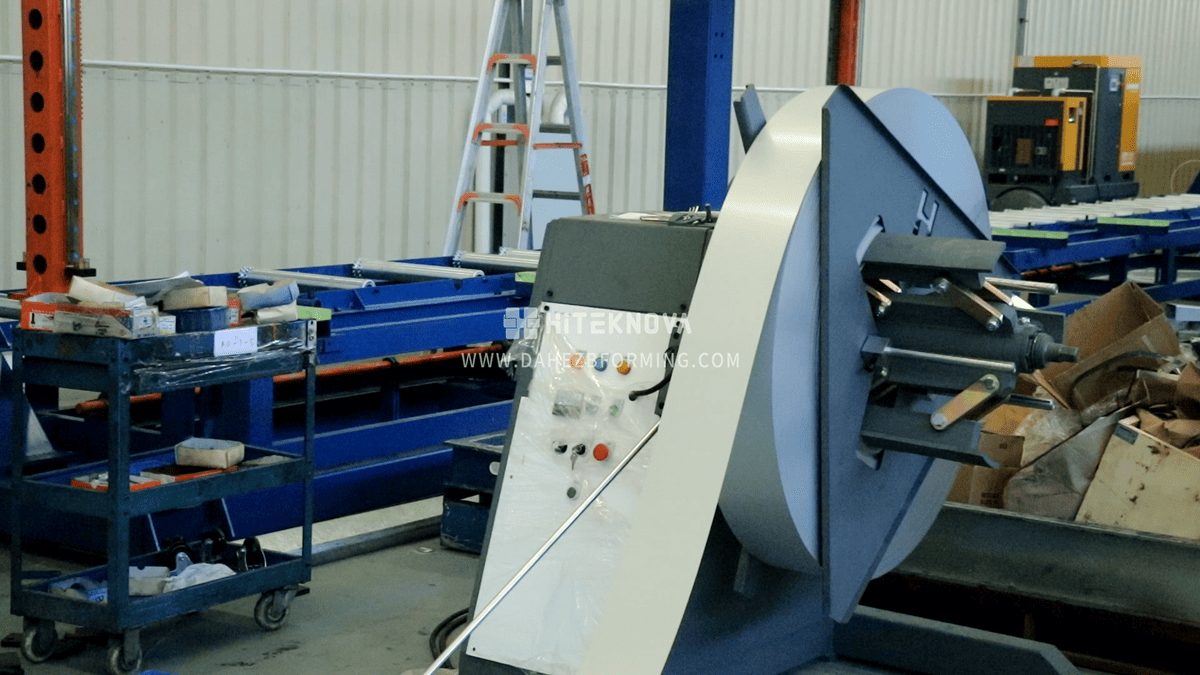

De-coiler→ Feed And Leveling Device→ Hydraulic punching→ Roll Forming System→ Hydraulic Cutting→ Product Support Frame

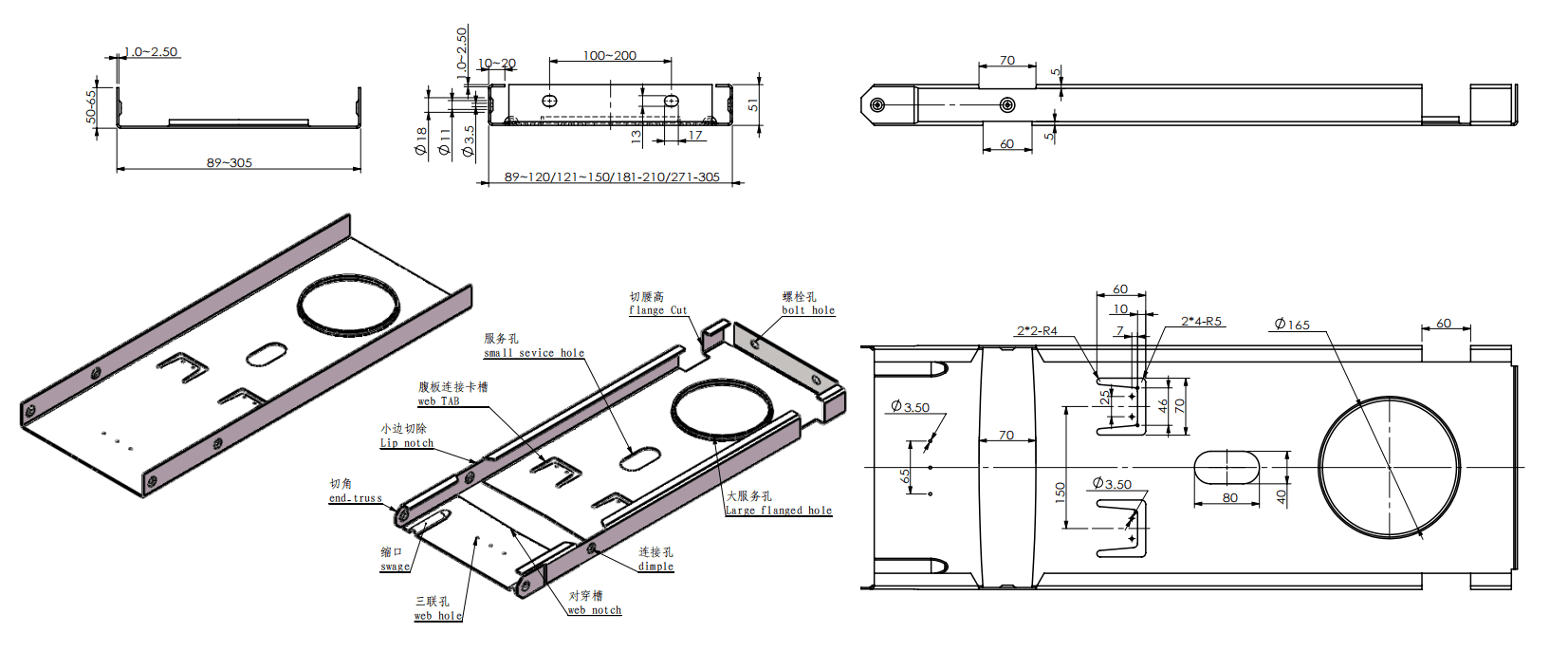

Profile Drawings

Standard Metric Sizes
Web Width	89-120mm,121-150mm,181-210mm,271-305 mm
Flange Height	50mm
Lip Width	10-20 mm
Max Material Thickness	1.0-2.5 mm，Q235、G550（Thickness less than 1.6mm）
End truss	1.0-2.5mm
Lip Cut	60mm and 70mm
Web Hole	Φ3.50mm
Dimple	17mm
Web Notch	70mm
Large Service Hole	Φ165mm

Standard Imperial Sizes
Web Width	3.5″-4.72″,4.76″-5.9″,7.1″-8.36″,10.6″-1.20’’
Flange Height	1.96″
Lip Width	0.39″-0.72″
Max Material Thickness	0.039″-0.098″,Q235、G550（Thickness less than 6.29″）
End truss	0.039″-0.098″
Lip Cut	2.36″ and 2.75″
Web Hole	Φ0.13″
Dimple	0.66″
Web Notch	2.75″
Service Hole	6.49″

Custom Service Holes size available on request
Custom Bolt Hole sizes available on request
Custom Web Holes size available on request
Plate speed: high speed 35m/min, (actual production speed according to the number of holes)
Changing sizes:Full-automatic (Dimensions can be changed automatically by PLC control)

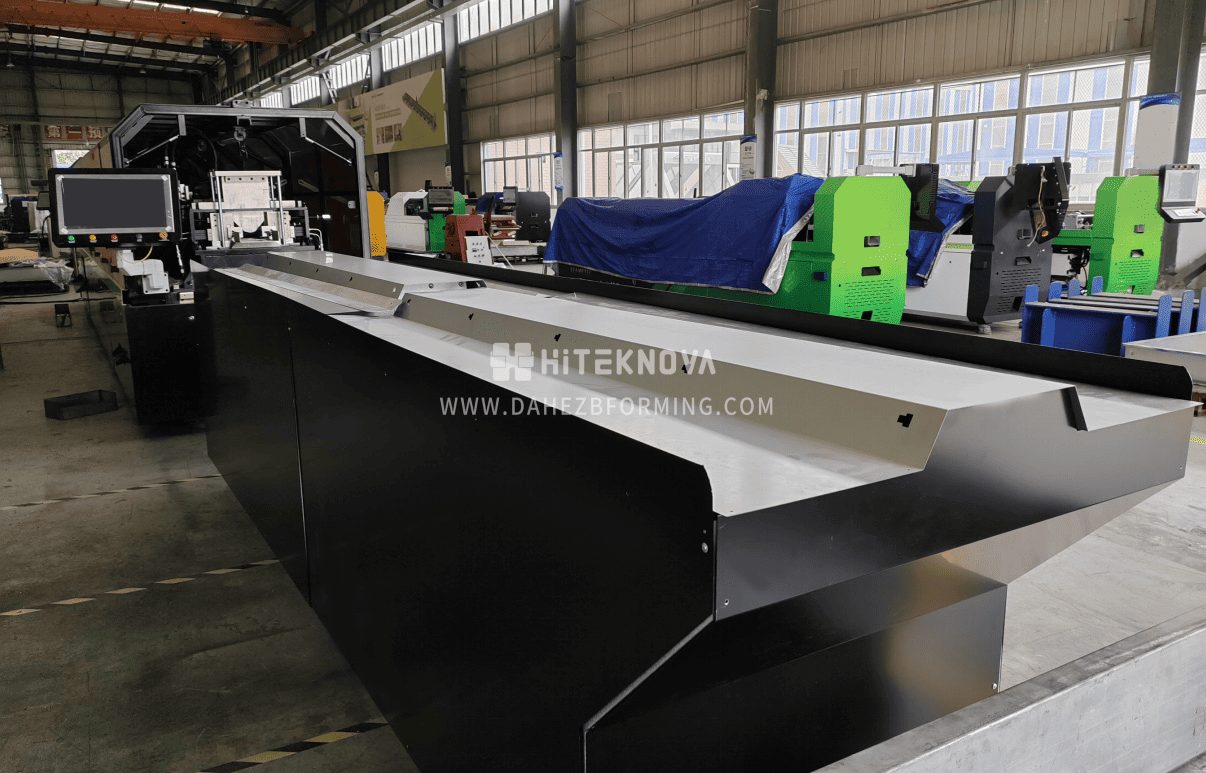

Detail
