Description

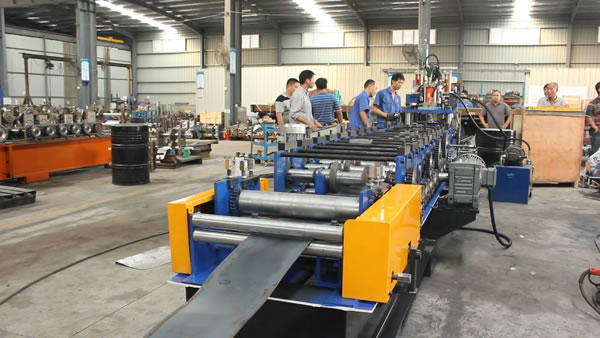

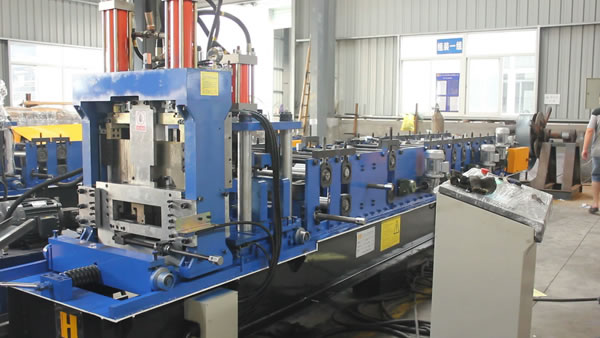

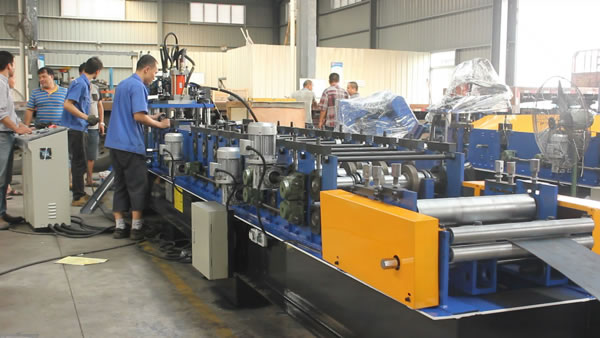

MC50-250 C purlin roll former is suitable for cabinet house and prefabricated house. It features light weight, small and stable running.
Flow Chart
De-coiler – leveling device – roll forming parts – post punching and post cutting – stack.
Advantages
1. 12 years’ manufacturing experience in C/Z purlin roll former
2. Competitive price and good quality
3. One year free warranty
4. Fast response of after sale service
5. Auto web size is changing from 50mm to 250mm in 2 minutes
6. Auto C purlin roll form machine can be customized by clients’ requirements.
7. Easy operate and easy to maintain
8. Self-developed of post cutter, one blade to cutter all size of final products
Parameters of MC50-250 C Purlin Roll Former
| No. | Name | Parameter | |
| Three-phase asynchronous motor | Hydraulic motor | ||
| 1 | Thickness | 0.8 to 2.5mm | |
| 2 | Main Motor | 15kW | 18.5kW |
| 3 | Hydraulic pressure | 16Mpa | |
| 4 | Control system | PLC | |
| 5 | Shaft material | 40Cr (Ф70) | |
| 6 | Roller | Cr12 vacuum treatment | |
| 7 | Forming speed | 6-10m/min | 12 to 18m/min |
| 8 | Blade material | Cr12Mov | |
| 9 | Forming station | 15 Stations | |
| 10 | Dimension(L×W×H) | 7m × 1.2m × 1.5m | |
Note
1. Suitable for cabinet house and prefabricated house
2. Maintain machine one time per month
